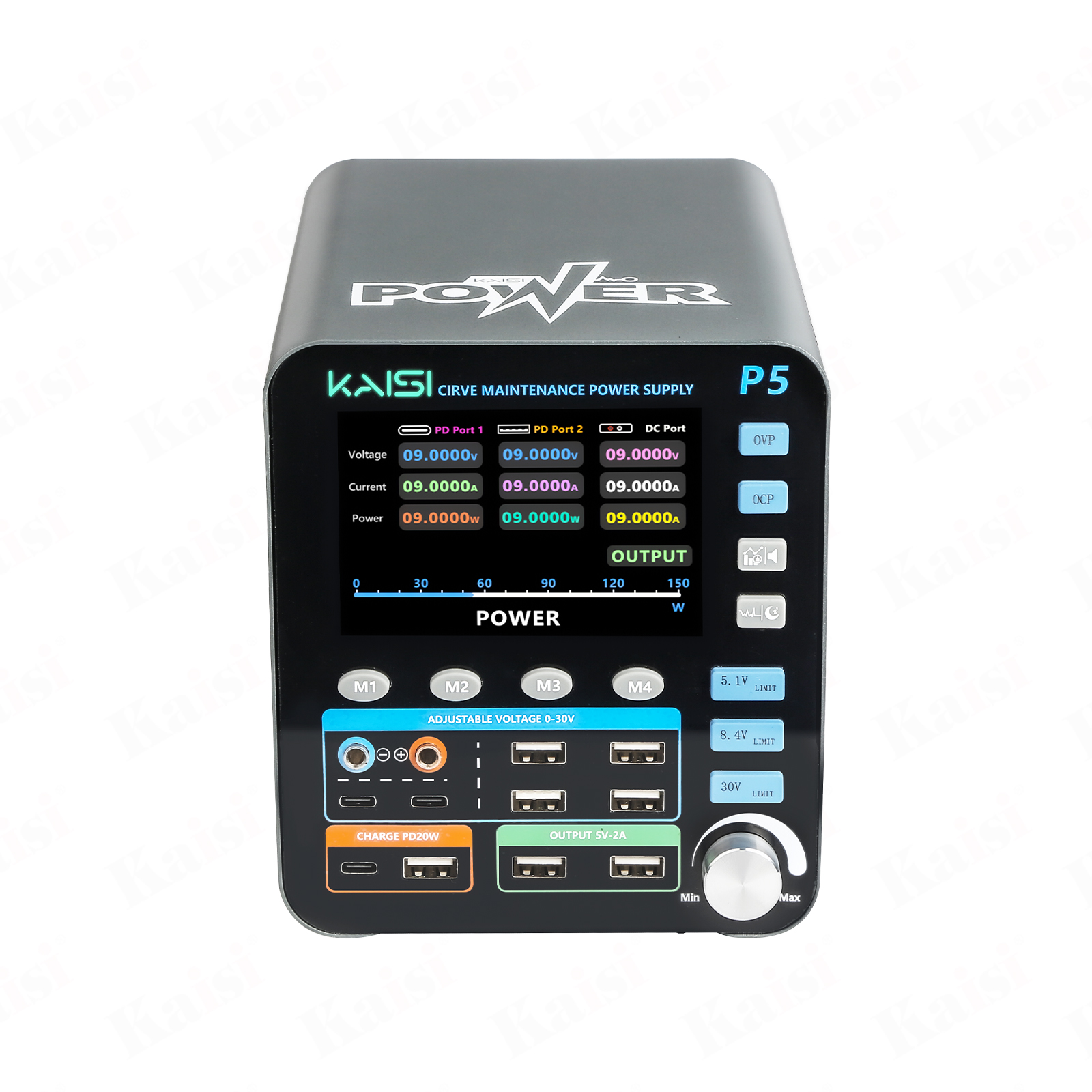

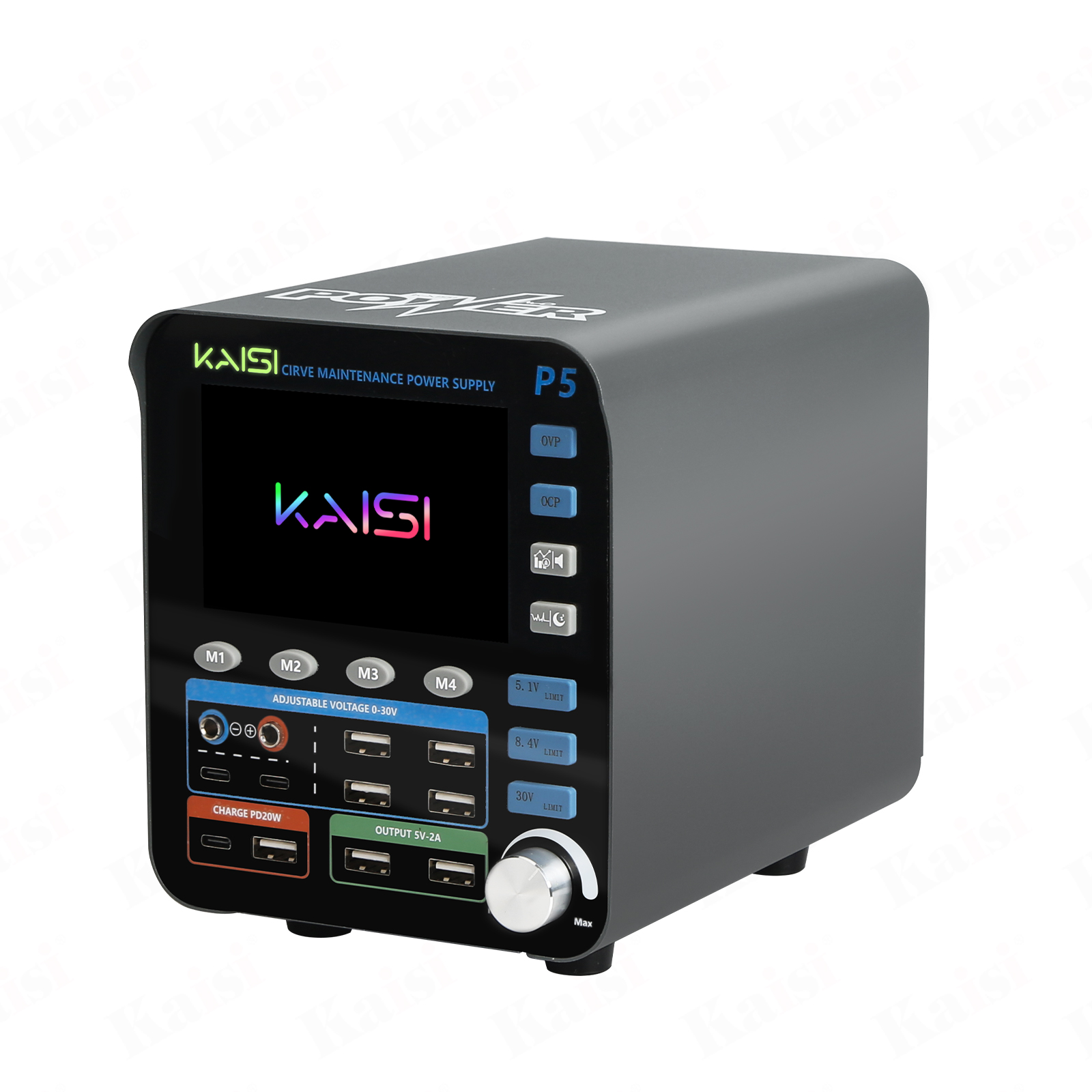

Product Name:Kaisi P5 power supply
1. 210W toroidal transformer, ensuring a stable output of 30V/5A, with anti-loss and no derating.
2.4-inch color screen, supporting dual-mode display of current curves and real-time data.
3. Automatically record peak current.
4. Supports PD fast charging, and the power output is not affected during charging.
2.4-inch color screen, supporting dual-mode display of current curves and real-time data.
3. Automatically record peak current.
4. Supports PD fast charging, and the power output is not affected during charging.
Product Details
Product Norm
Aftermarket Service
1.It adopts a powerful core, with a 210W toroidal transformer providing energy, ensuring a stable output of 30V5A for the power supply under any environmental conditions, line losses, and charging losses.
When converted to 30V5A, only 150W is sufficient. However, any circuit or additional functions will have power loss. Even when charging the phone with a charging cable, power will be lost.
Moreover, even if the power is just sufficient, the output at the limit is unstable. Therefore, to avoid losses and the impact of extreme conditions, we have increased the use to a 210W ultra-high power toroidal transformer.

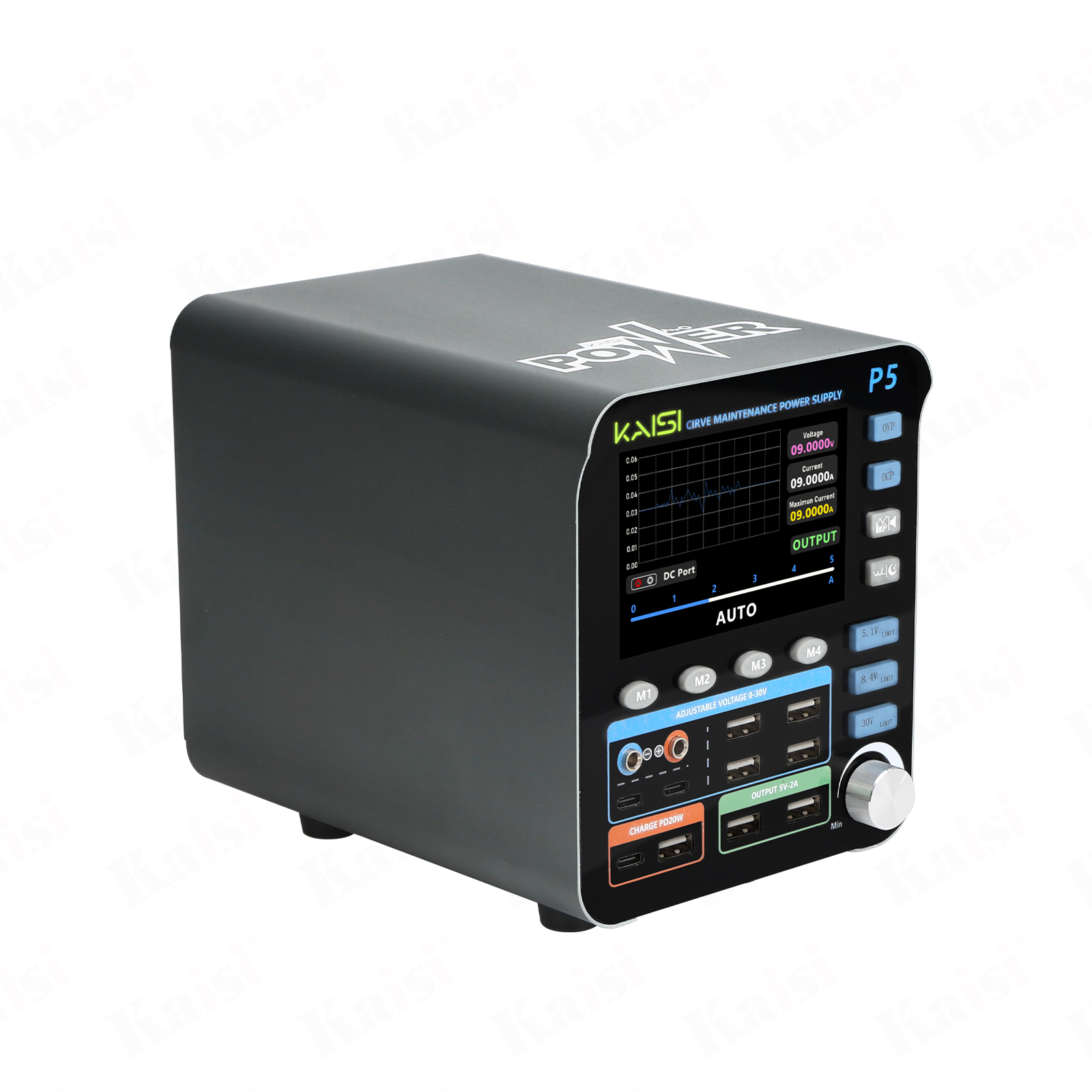

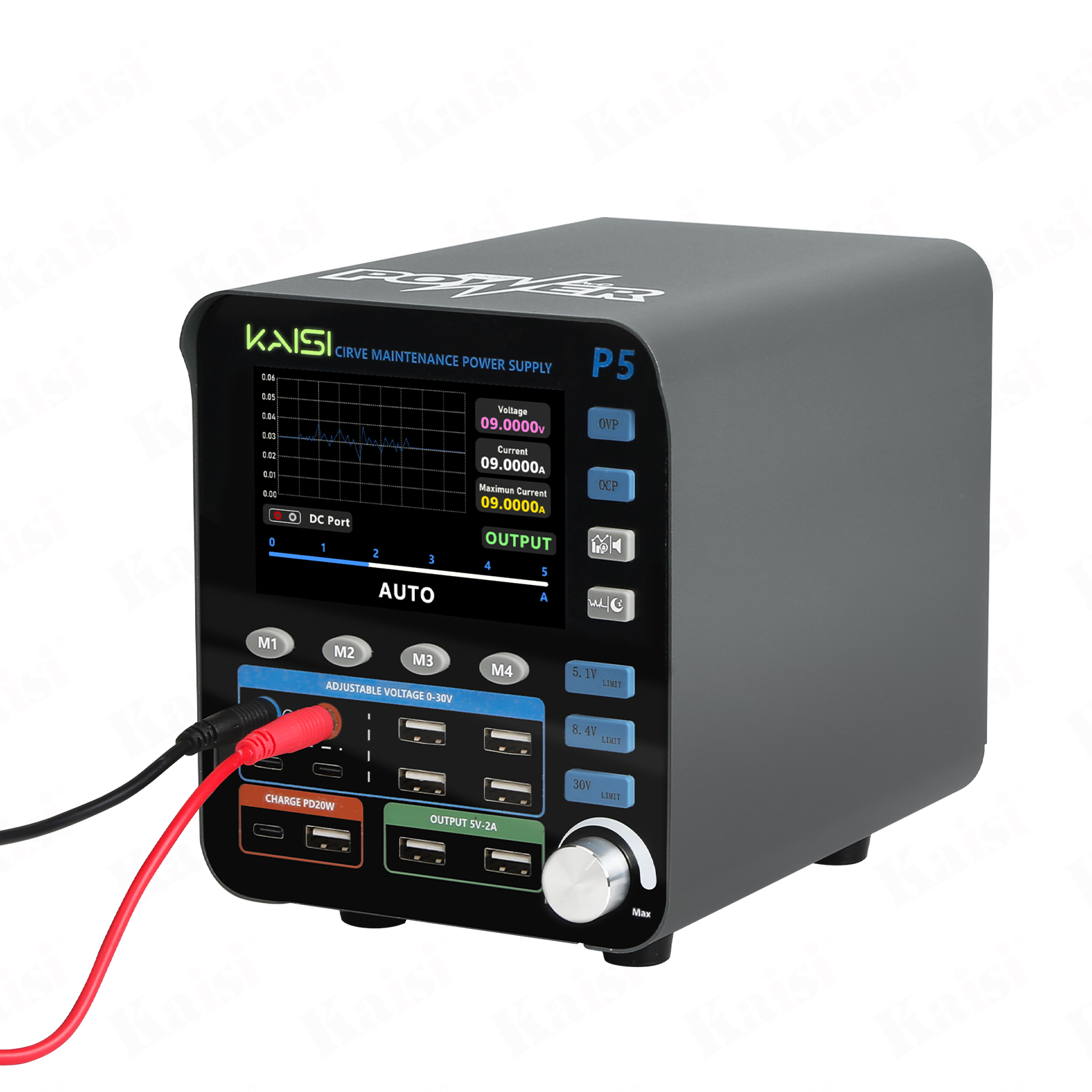

2. It adopts a highly sensitive 4-inch color LED screen display, featuring two display modes: curve current display mode during maintenance and real-time data detection during charging.
3. Automatically record peak current data.

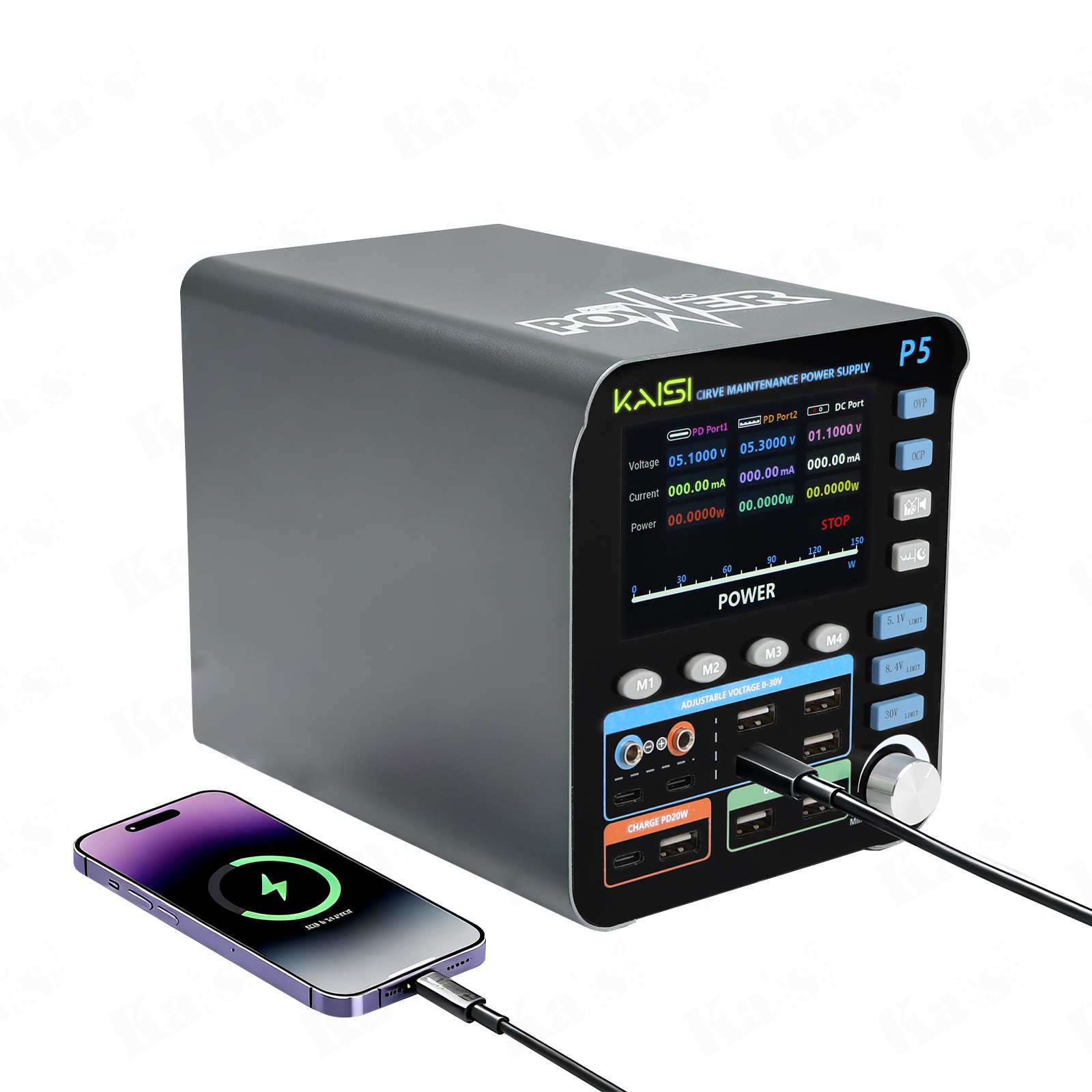

4. Compatible with the PD fast charging protocol, it can achieve 20W fast charging. Due to its large core power, it does not affect the power output while charging the phone.
When converted to 30V5A, only 150W is sufficient. However, any circuit or additional functions will have power loss. Even when charging the phone with a charging cable, power will be lost.
Moreover, even if the power is just sufficient, the output at the limit is unstable. Therefore, to avoid losses and the impact of extreme conditions, we have increased the use to a 210W ultra-high power toroidal transformer.
2. It adopts a highly sensitive 4-inch color LED screen display, featuring two display modes: curve current display mode during maintenance and real-time data detection during charging.
3. Automatically record peak current data.
4. Compatible with the PD fast charging protocol, it can achieve 20W fast charging. Due to its large core power, it does not affect the power output while charging the phone.
• Power output: 30V / 5A (150W) stable output
• Transformer power: 210W toroidal transformer (with sufficient margin reserved to ensure stable operation under high load)
• Display screen: 4-inch color LED screen
• Display mode:
Maintenance mode: Curve current display
• Electrical mode: Real-time data detection
• Functional features: Automatically record peak current
• Fast charging protocol: Supports PD fast charging, with a maximum of 20W
• Charging compatibility: It does not affect the normal power output during charging
• Transformer power: 210W toroidal transformer (with sufficient margin reserved to ensure stable operation under high load)
• Display screen: 4-inch color LED screen
• Display mode:
Maintenance mode: Curve current display
• Electrical mode: Real-time data detection
• Functional features: Automatically record peak current
• Fast charging protocol: Supports PD fast charging, with a maximum of 20W
• Charging compatibility: It does not affect the normal power output during charging
