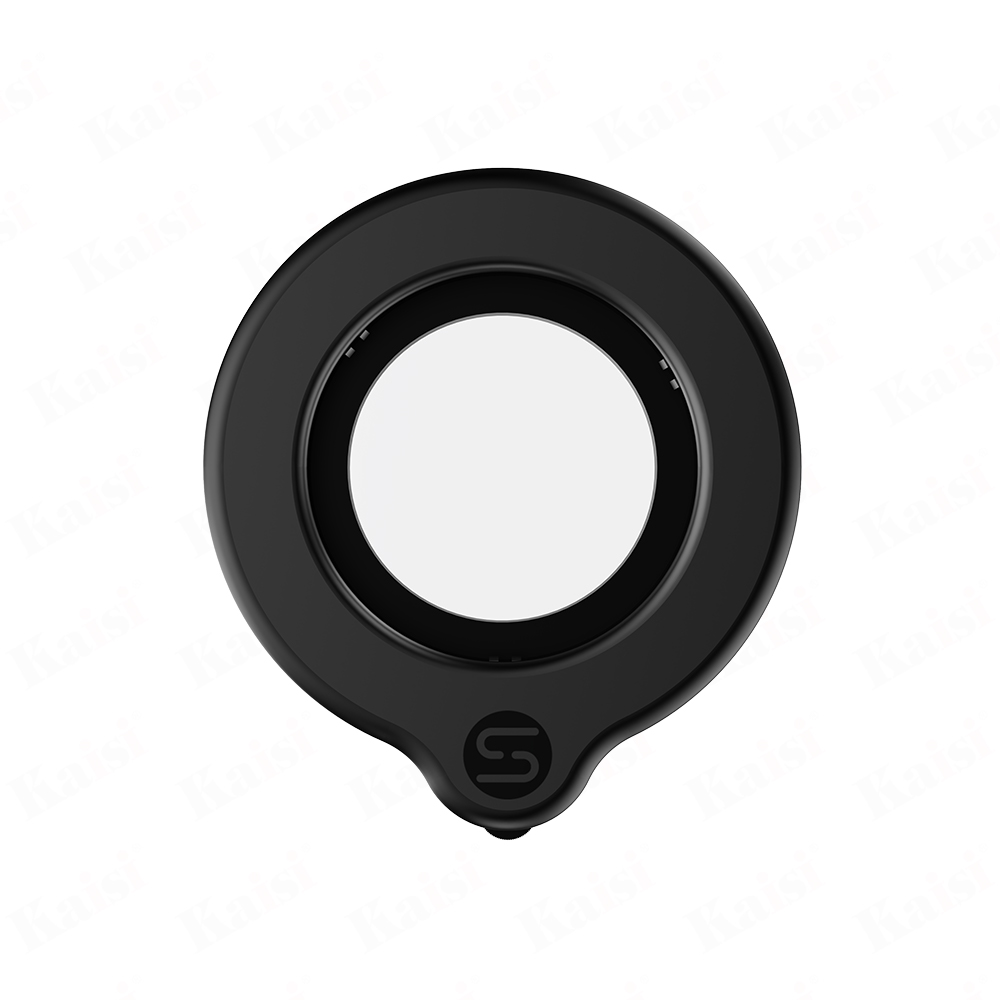

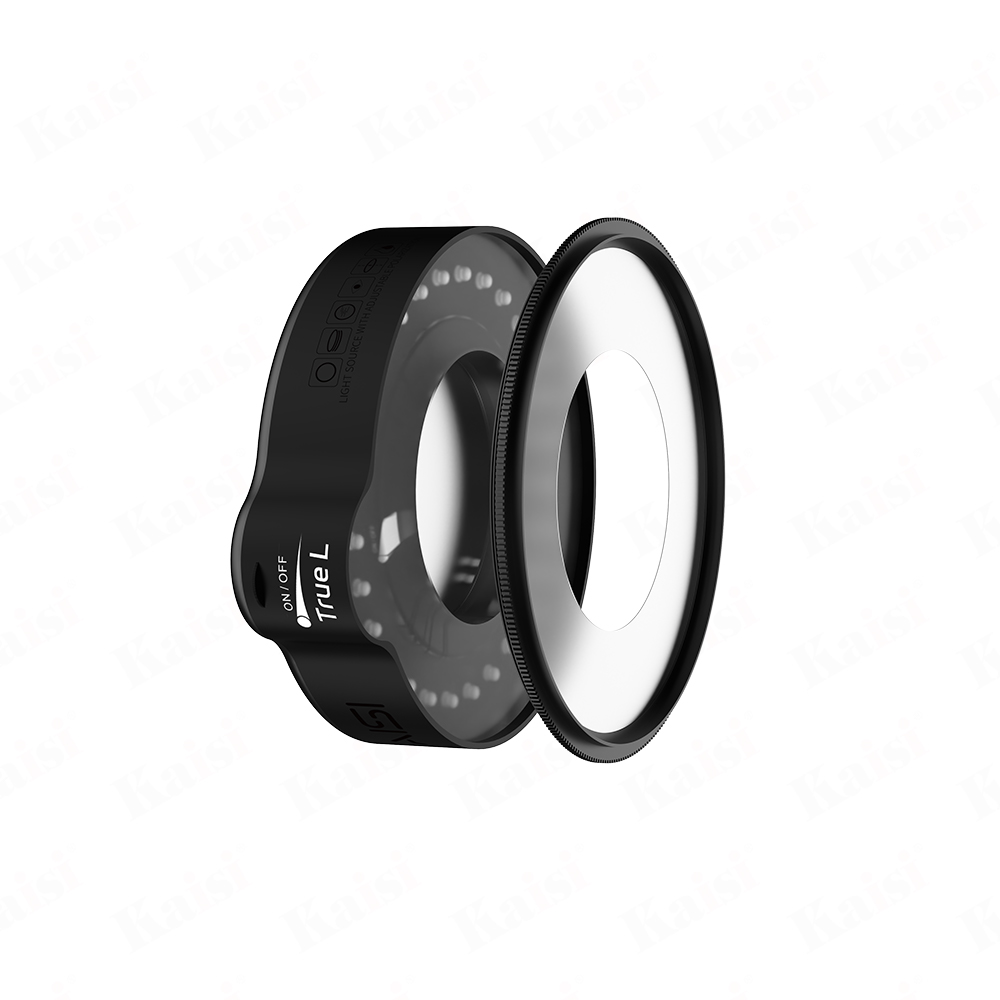

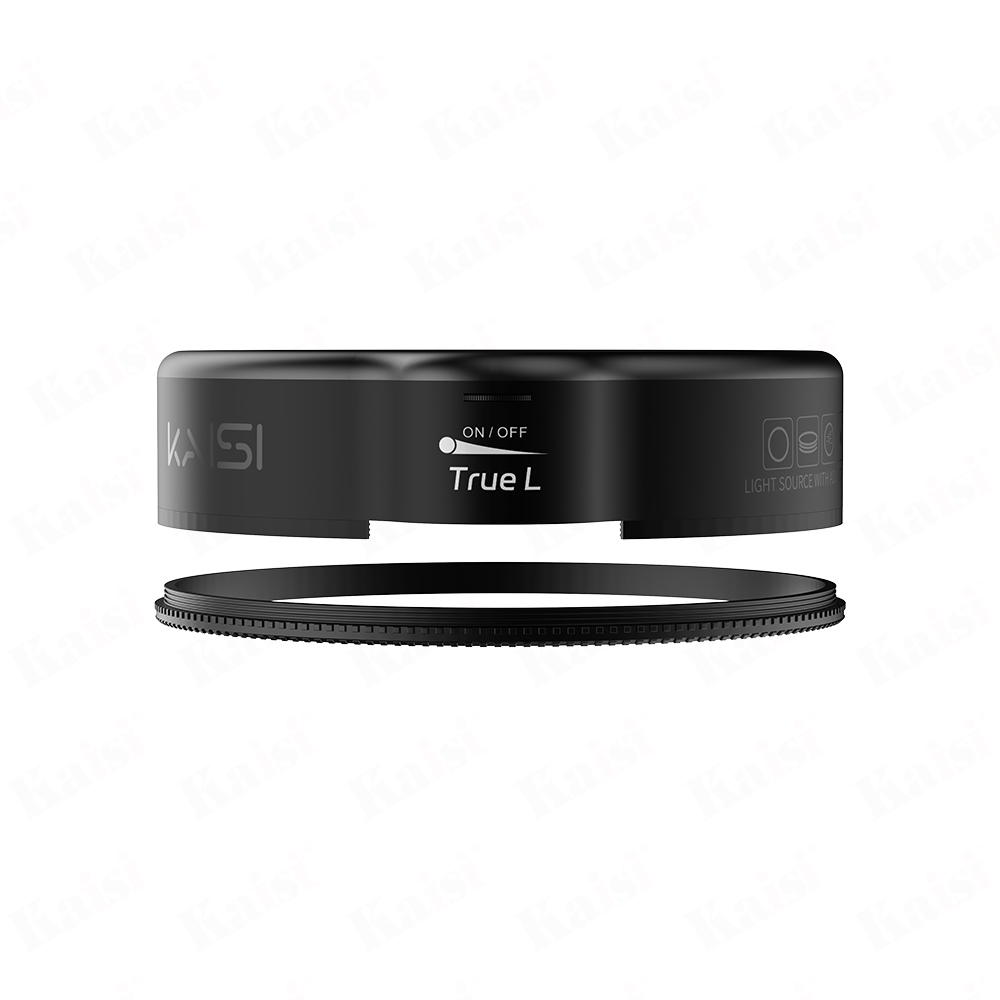

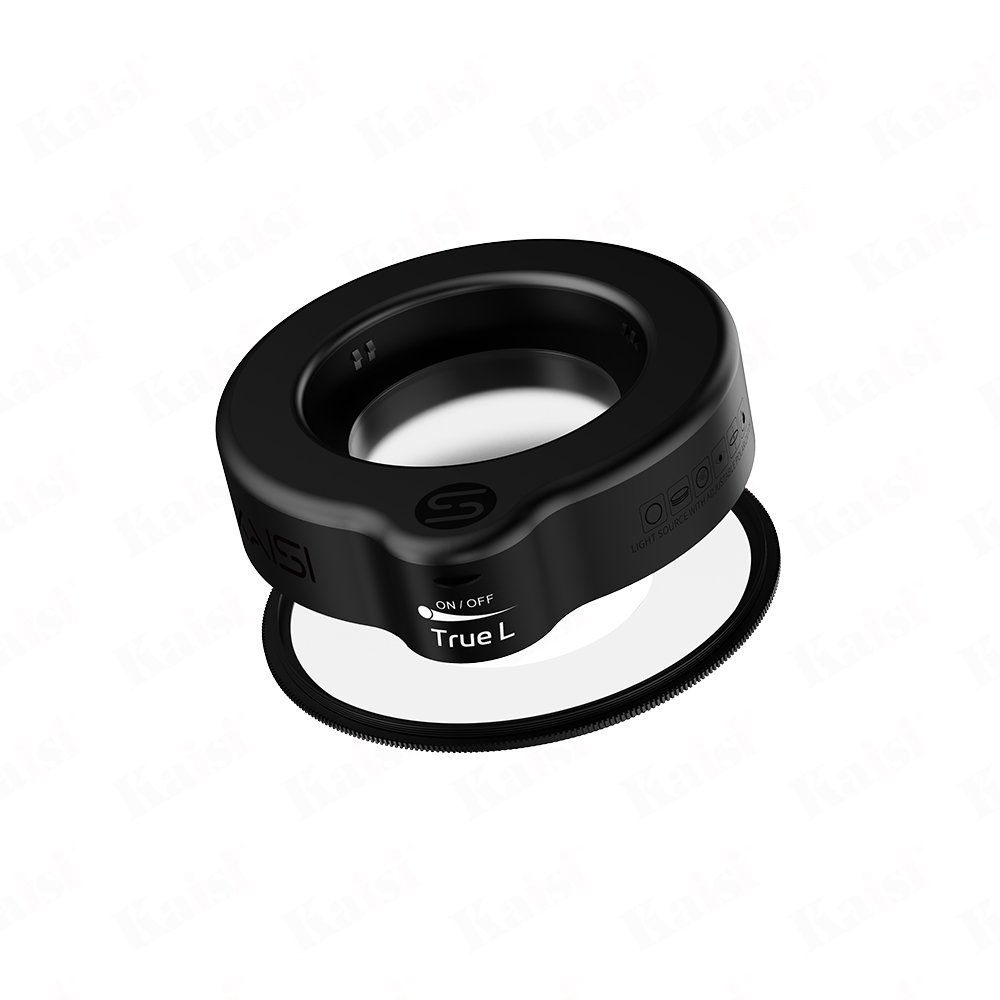

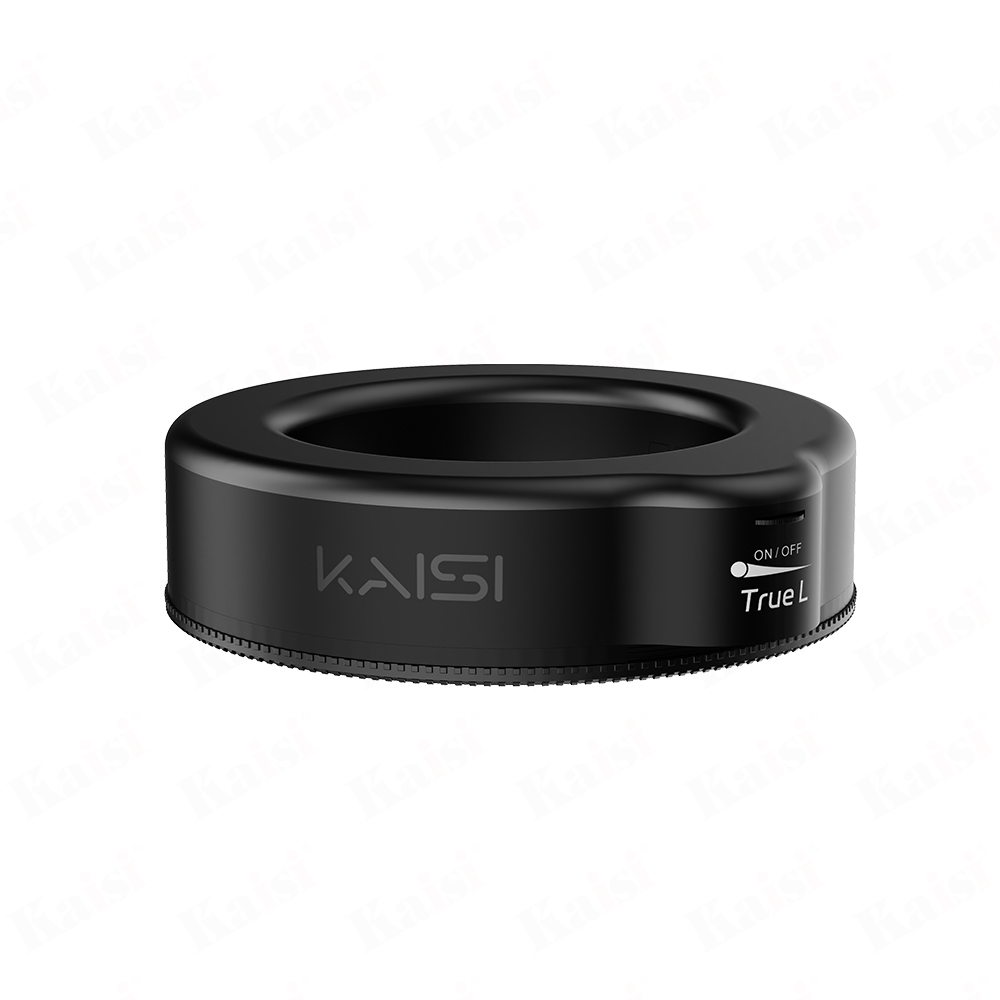

Product Name:Ture L polarized light circle lamp
The Ture L light source is a circular lamp with adjustable polarization with an adjustable polarizer to reduce glare and reflection during microscopy. The light source consists of 40 LED beads with high chromaticity and excellent color reproduction capability. Gear less brightness adjustment design, light source white temperature is positive white, use more eye protection and energy saving.
Barcode (EAN)
6922297031274
Product Details
Product Norm
Aftermarket Service
1. Clamp the ring light to the microscope objective cover.
2. Insert the DC plug of the USB-DC connection cable into the lamp body socket, and insert the USB plug into the charging adapter or mobile power supply.
3, rotate the brightness adjustment knob, turn on the ring light and adjust the brightness.
4, select the appropriate magnification and adjust the microscope to the visual clarity.
5, rotate the polarizer lens to the appropriate position, and cooperate with the internal polarizer to filter stray light, so that some of the components are not obvious marks become clear.
2. Insert the DC plug of the USB-DC connection cable into the lamp body socket, and insert the USB plug into the charging adapter or mobile power supply.
3, rotate the brightness adjustment knob, turn on the ring light and adjust the brightness.
4, select the appropriate magnification and adjust the microscope to the visual clarity.
5, rotate the polarizer lens to the appropriate position, and cooperate with the internal polarizer to filter stray light, so that some of the components are not obvious marks become clear.
Barcode
6922297031274
Input voltage :DC 12V
Rated power :3W
Color rendering index :Ra > 80
Luminous flux :388lm
Number of LED beads :40pcs
Dimensions :Φ84×28mm
Weight :65g
6922297031274
Input voltage :DC 12V
Rated power :3W
Color rendering index :Ra > 80
Luminous flux :388lm
Number of LED beads :40pcs
Dimensions :Φ84×28mm
Weight :65g
