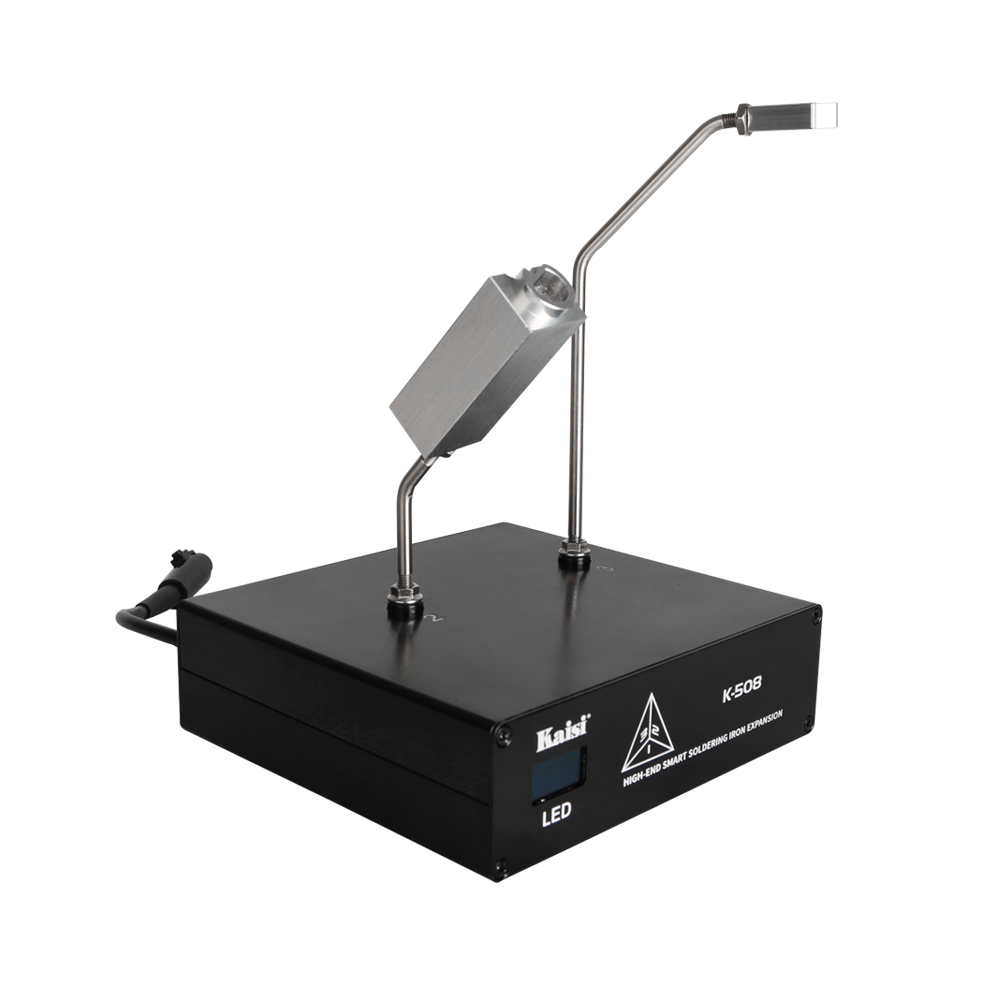

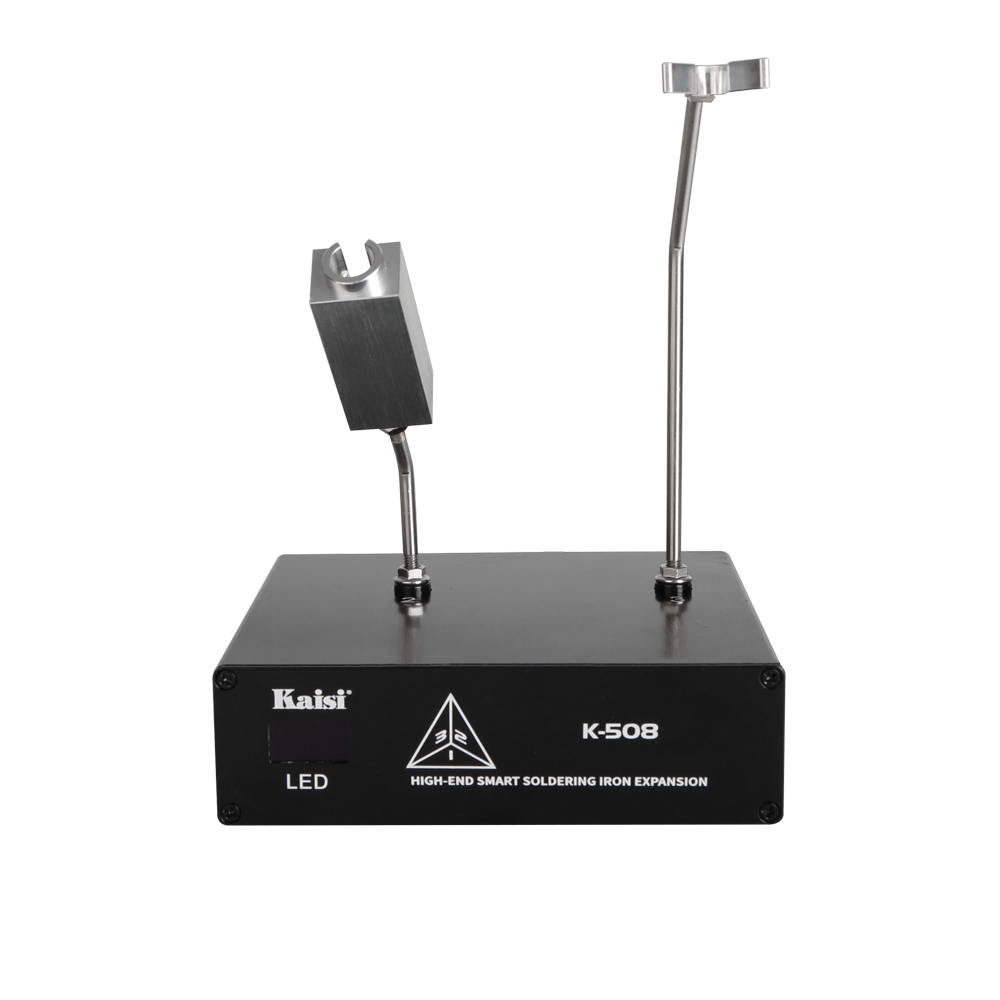

Product Name:K-508
1、This is a machine with 1 main machine & 3 soldering station functions ,it is vey easy to use ,and avoid wastage because of change soldering tips frequently
2、It will increase the usage rate of JBC soldering station to decrease the use-cost effectively
2、It will increase the usage rate of JBC soldering station to decrease the use-cost effectively
3、It is up to 3 compound mode for handels :T210×2+T115,T245×2+T115,T210+T245+T115
4、Number 1 &number 2 connector is suitable for handle 210 or 245,only transfer according the switch on top of connector.
Barcode (EAN)
6922297053467
Product Details
Product Norm
Aftermarket Service

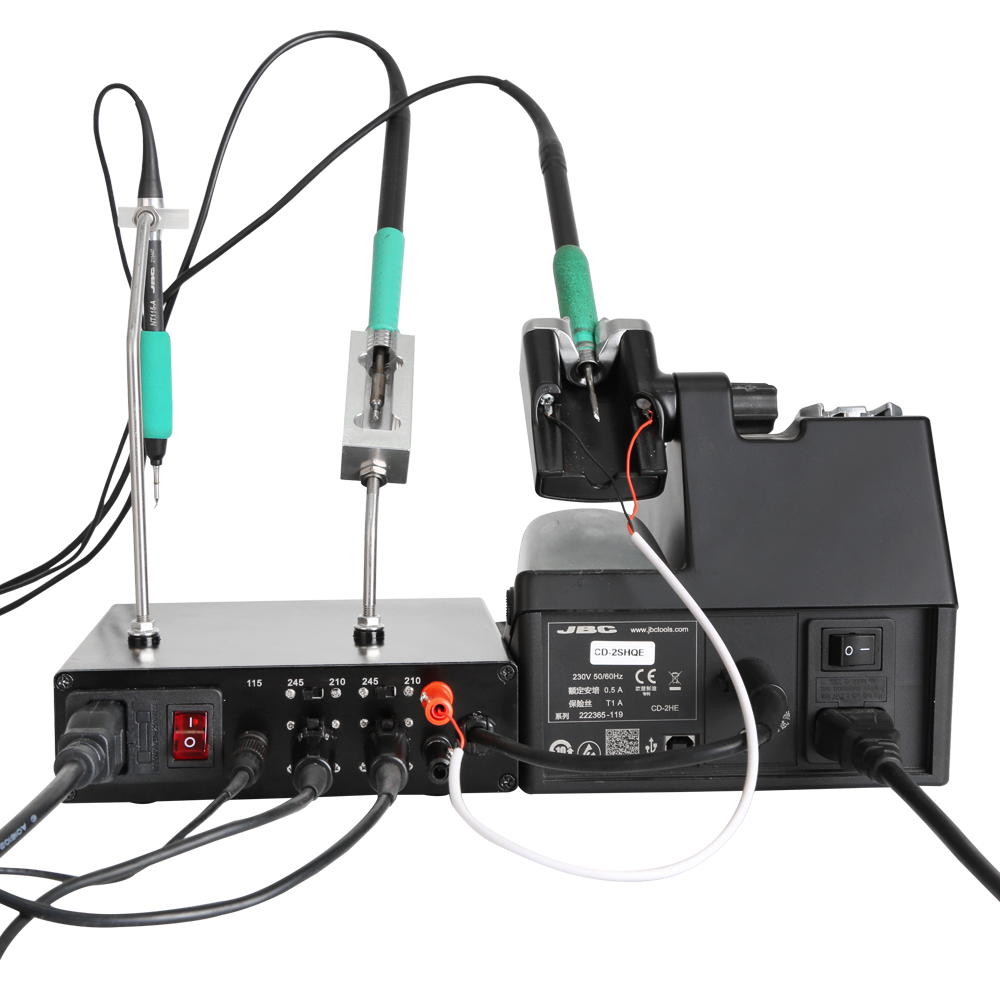

1、K-508 extender is special for JBC soldering handle,
2、It should replace the insulating screw to which is onthe soldering station handle stand right size before testing,Then sut up the sleeping induction cable。
3、When you are usin K-508 extender ,you should start K-508 extender first ,after start JBC soldering station. If you start JBC station first ,It will showing#NO TOOLS# (It will get right after 2 second), it will increasing temperature normally .
4、Number 1# handel shoule be put in K-508 extender main machine stand

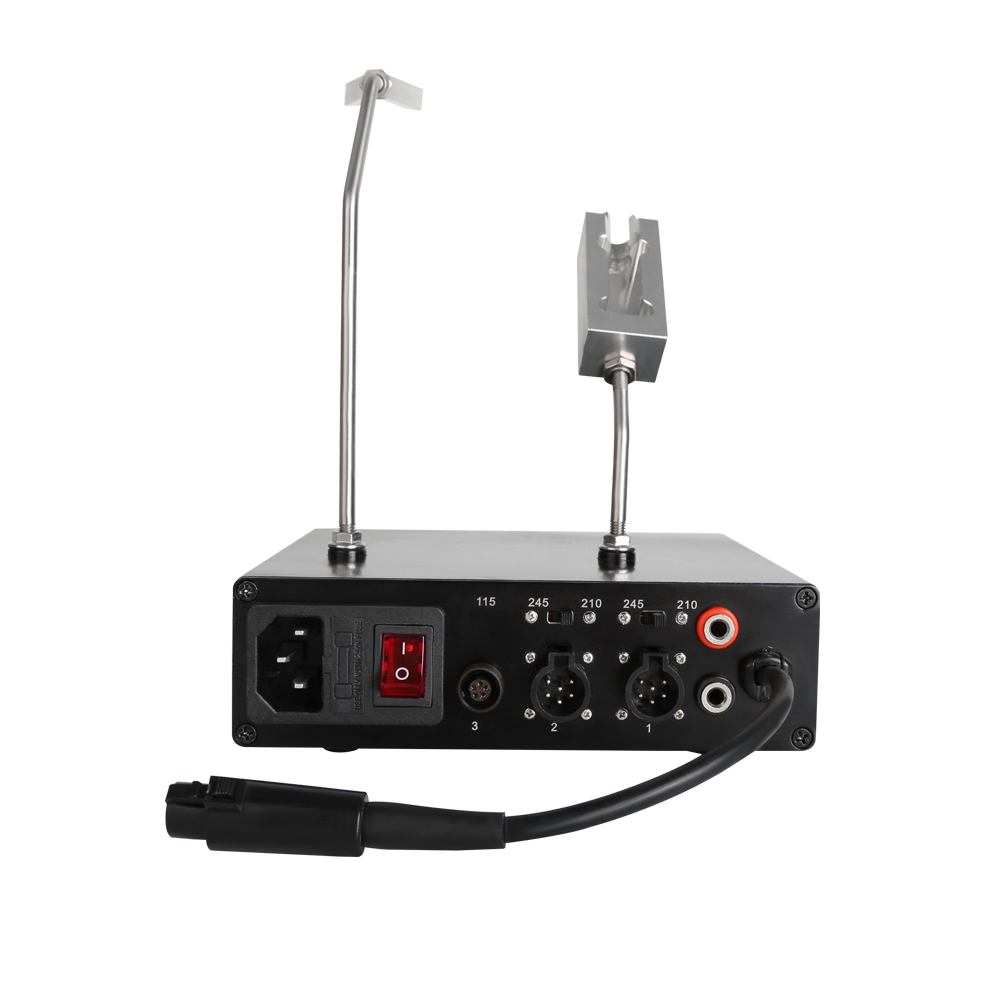

5、Number 1 &number 2 connector is suitable for handle 210 or 245,only transfer according the switch on top of connector
6、Number 3 connector is for JBC C115 soldering handle
2、It should replace the insulating screw to which is onthe soldering station handle stand right size before testing,Then sut up the sleeping induction cable。
3、When you are usin K-508 extender ,you should start K-508 extender first ,after start JBC soldering station. If you start JBC station first ,It will showing#NO TOOLS# (It will get right after 2 second), it will increasing temperature normally .
4、Number 1# handel shoule be put in K-508 extender main machine stand
5、Number 1 &number 2 connector is suitable for handle 210 or 245,only transfer according the switch on top of connector
6、Number 3 connector is for JBC C115 soldering handle
K-508 main machineX1PC
power lineX1
Sleeping induction cableX1
Insulating screwX1
power lineX1
Sleeping induction cableX1
Insulating screwX1
Instruction bookX1
Input voltage:AC110V-220V 50Hz/60Hz
Output voltage:AC24V
Size:150mmX150mmX210mm:weight:0.7Kg
Barcode (EAN)
6922297053467
