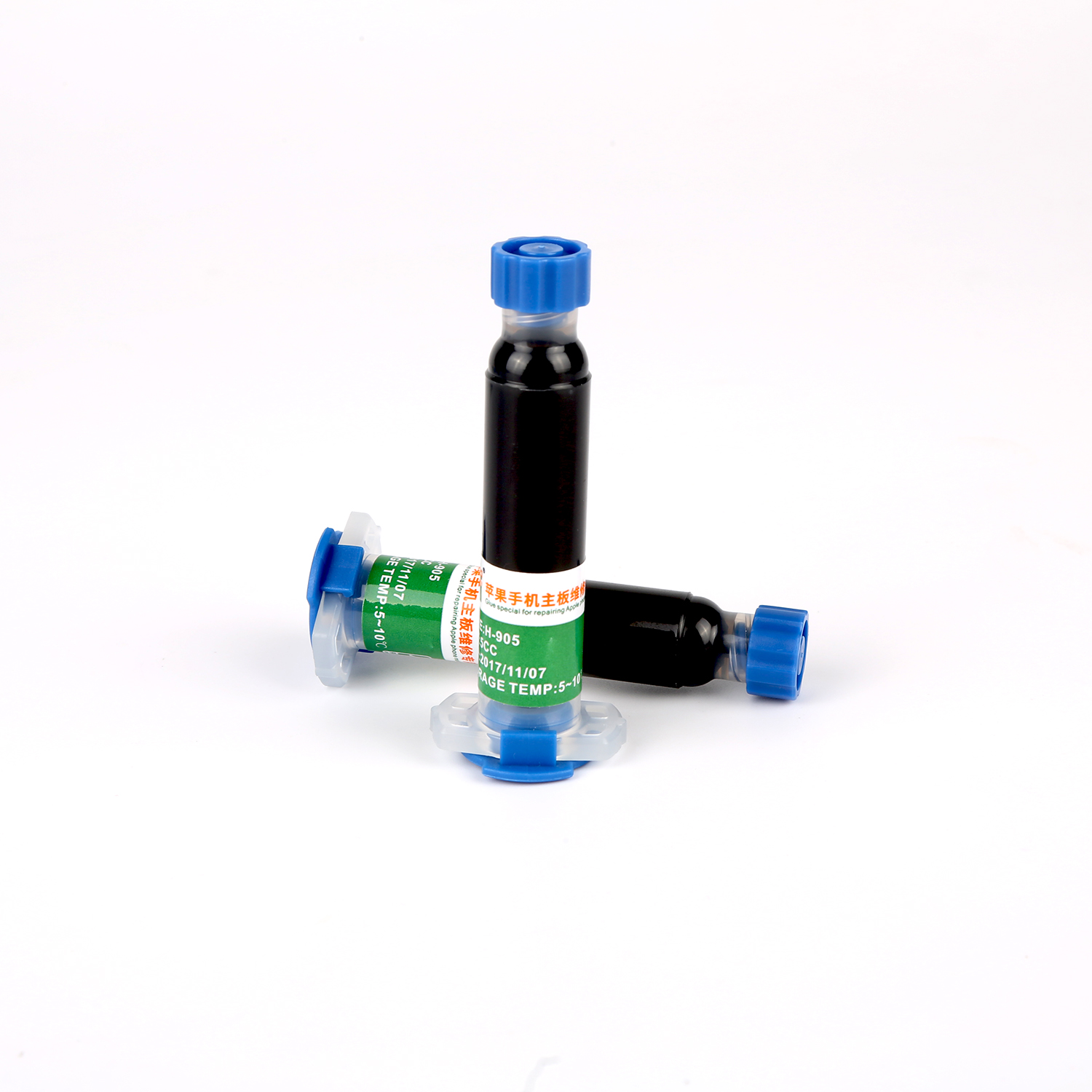

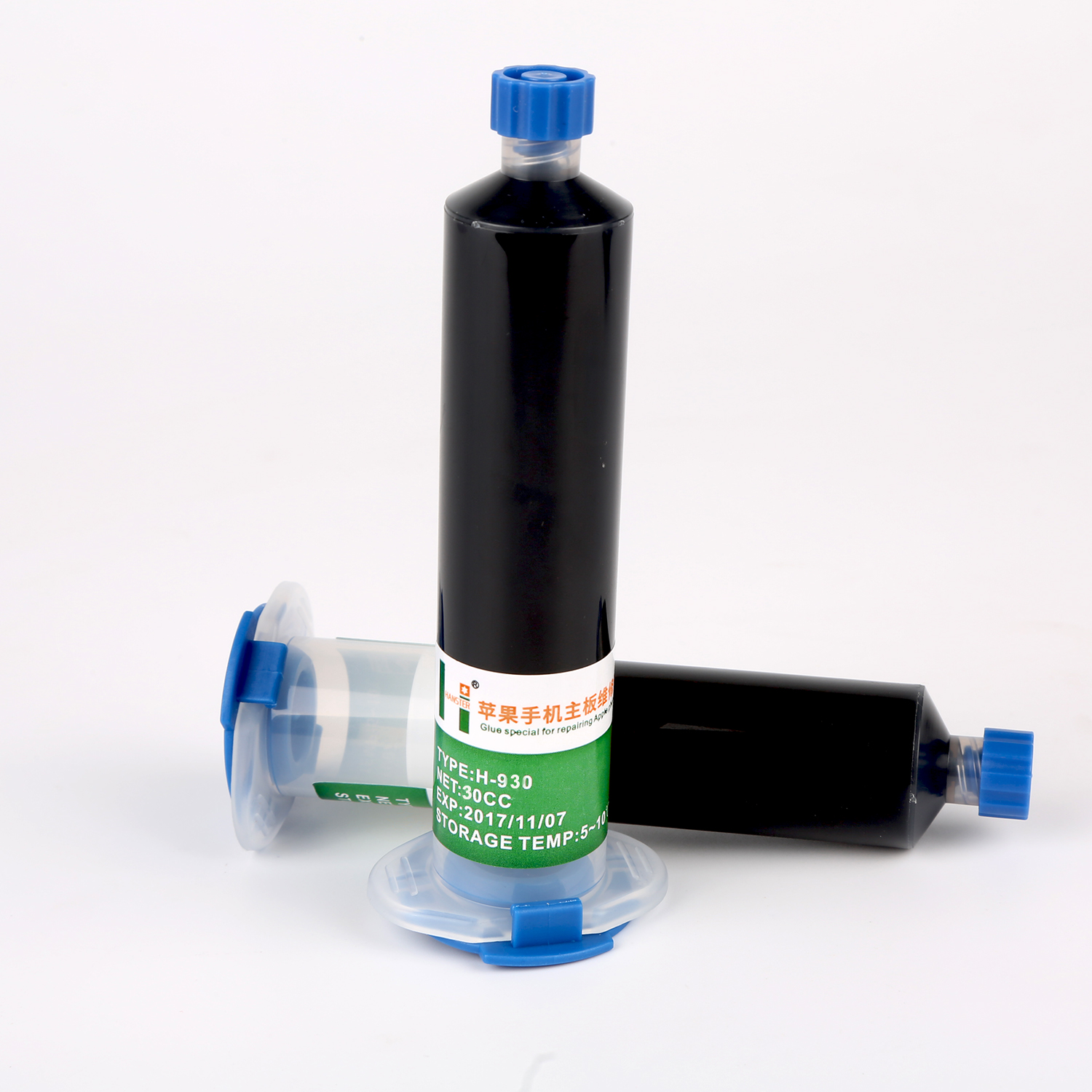

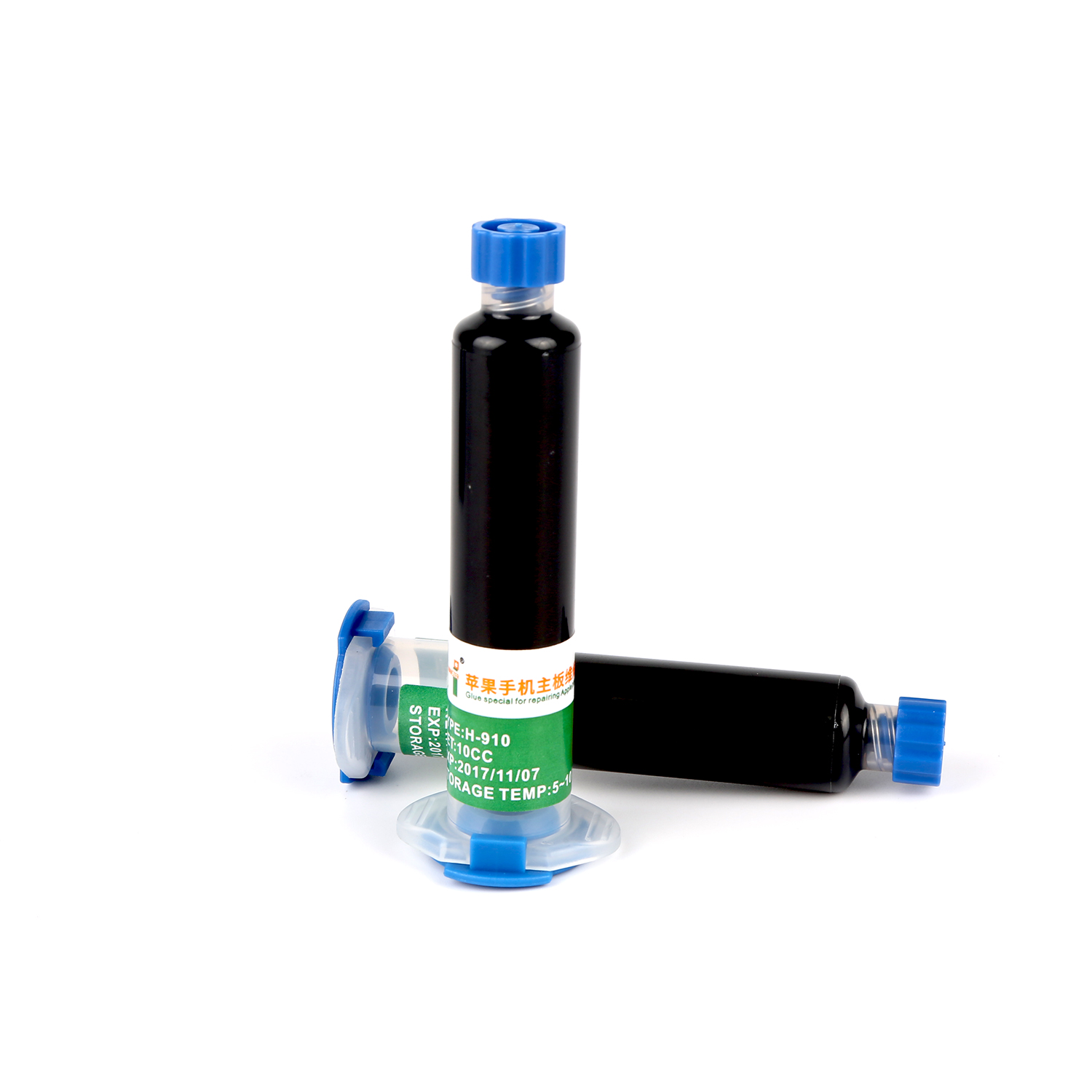

Product Name:Glue special for repairing Apple phone mainboard
Applications: 6 / 6S plastic hard drive, plastic resistors, CPU plastic, with the seat, WIFI antenna, chip, notebook motherboard BGA IC, and other electronic components for plastic
Product Details
Product Norm
Aftermarket Service
Before curing:
Appearance black, viscosity (mPa.S) 800-1200 @ 25 ℃;
Density 1.25 g / cm3
After curing:
The appearance of light black, glass transition temperature 60 ℃;
Hardness 73-83 Shore D; shear strength 15Mpa;
Surface resistance of 1.0X1015 ohm / cm (25 ℃),
Volume resistance 2.5X1016 ohm / cm (25 ℃);
Withstanding voltage of 18-22kv / mm (25 ℃).
Appearance black, viscosity (mPa.S) 800-1200 @ 25 ℃;
Density 1.25 g / cm3
After curing:
The appearance of light black, glass transition temperature 60 ℃;
Hardness 73-83 Shore D; shear strength 15Mpa;
Surface resistance of 1.0X1015 ohm / cm (25 ℃),
Volume resistance 2.5X1016 ohm / cm (25 ℃);
Withstanding voltage of 18-22kv / mm (25 ℃).
30CC
10CC
5CC
10CC
5CC
