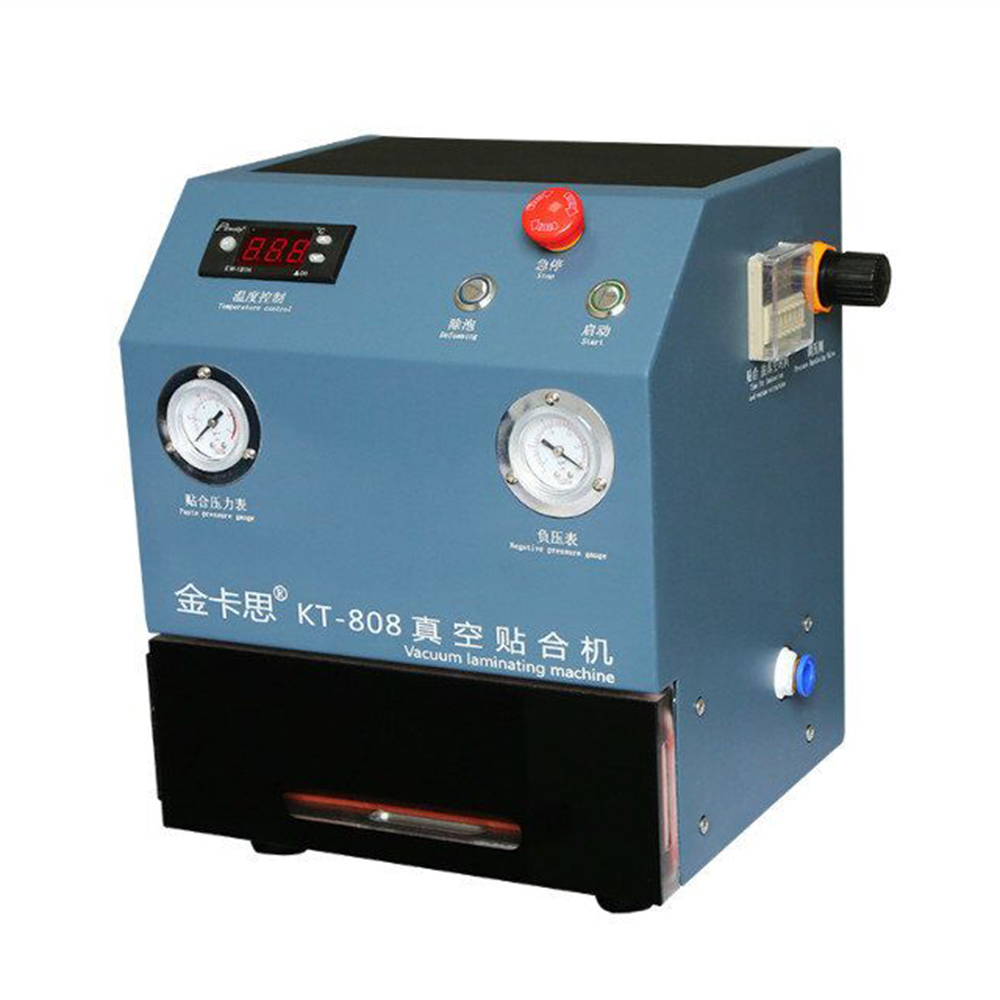

Product Name:KT-808
This is a vacuum laminating machine with two kinds of modes. It needs external vacuum pump and air compressor.
Product Details
Product Norm
Aftermarket Service
Operating steps:

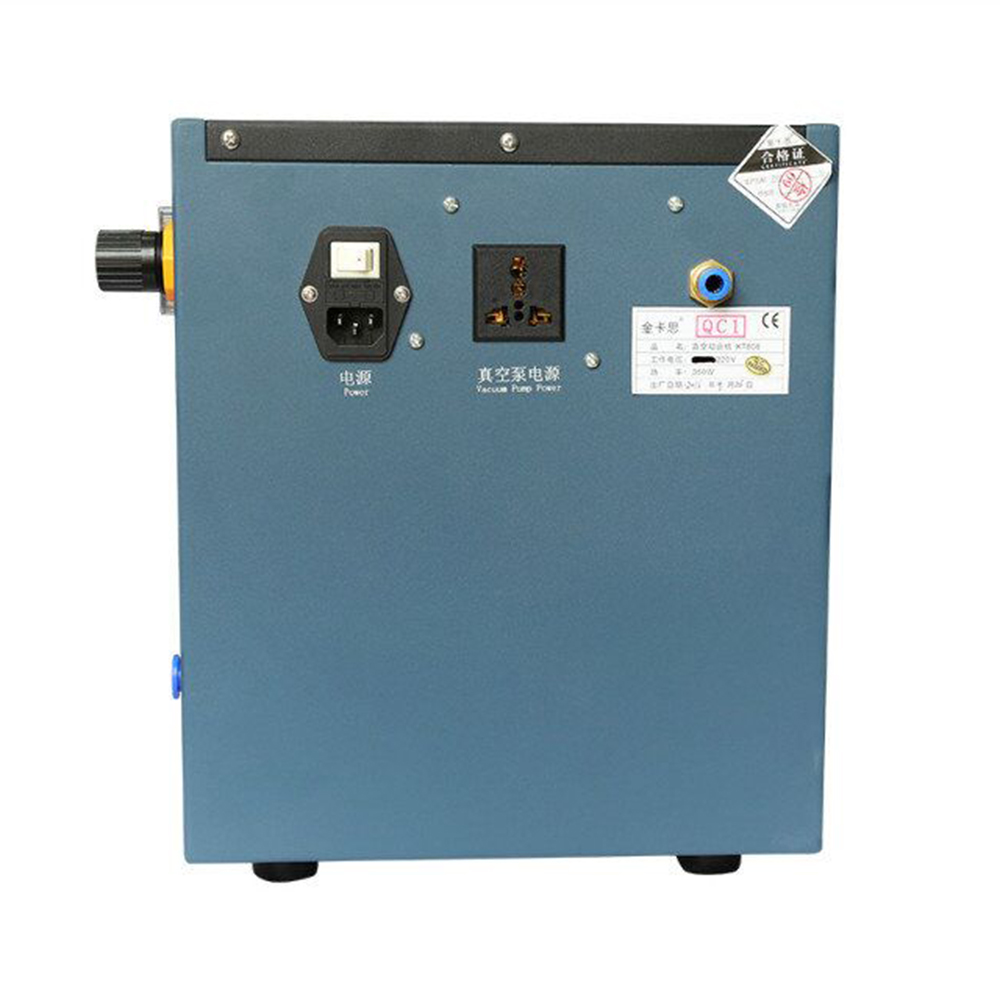

1.Plug in the power cord then turn on the power switch.
2.Rotating STOP Rotary Knob clockwise untill upspring.3.Setting time 30 seconds for vacuum and 30 seconds for laminating.

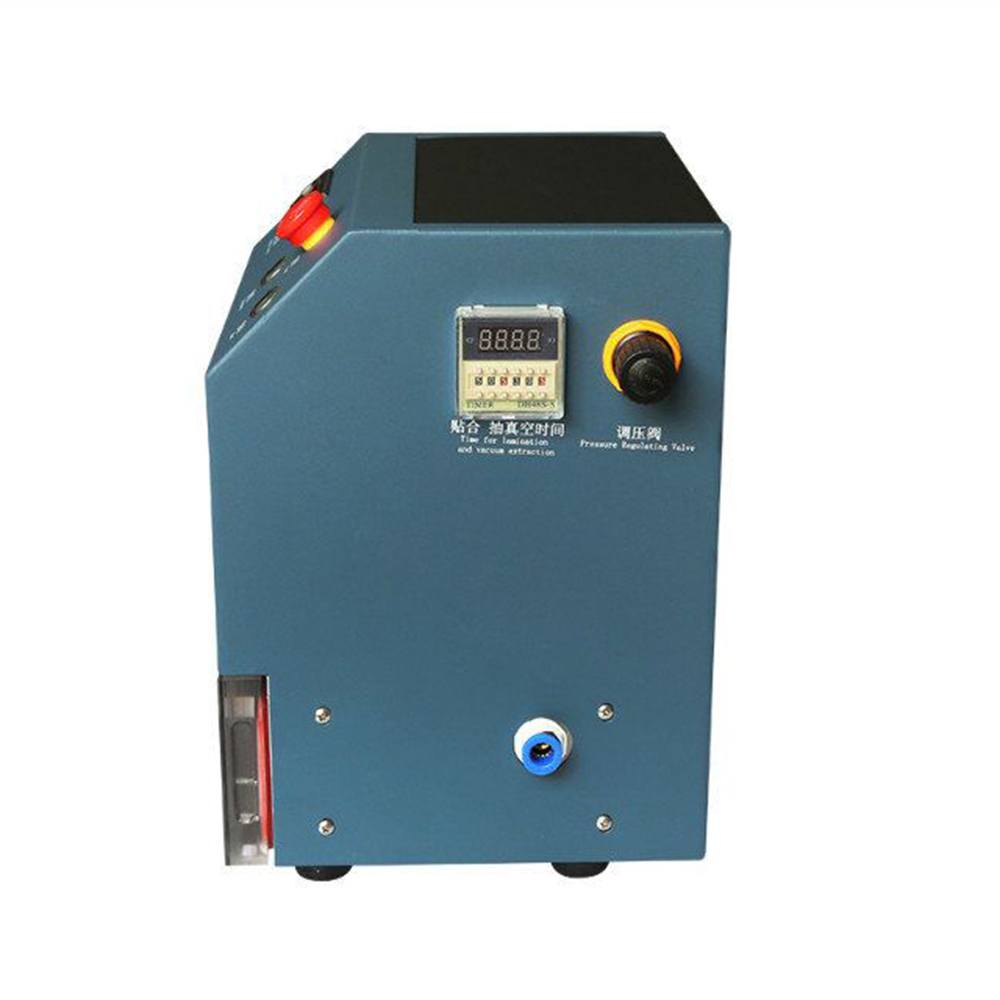

4.Adjusting Pressure Regulating Valve to the range of 3.5kg/cm² to 5.0kg/cm².
5.Setting temperature to the range of 40℃ to 50℃.
6.Cleaning the LCD first and then using a paster to tear off a protective film of the cover-plate which is covered with OCA glue.
7.Putting the cover-plate on LCD and press it lightly after aligning them. Then you should put them in laminating area upturned.
8.Closing the door and press the START Button. The machine will vacuumize.
9.After 30 seconds the machine will skip to bubble removing, pressing and laminating,then it will exhaust automatically according to the setting time.
10.Opening the door and please kindly take out LCD.
Supply： AC220V/AC110V
Power： 300W
Size： 290*245*350mm
Weight： 23KG
Packing Size： 425*325*420mm
Packing Weight： 26.5KG
Power： 300W
Size： 290*245*350mm
Weight： 23KG
Packing Size： 425*325*420mm
Packing Weight： 26.5KG
