Product Name:K-326
· Mobile phone repair tool set for disassembling iPhone CPU
· For BGA repairing,dismantling phone CPU chip and phone repairing.
· It can be used to separate the welding spot.
· Application: For repairing the mainboard of iPhone, disassembling CPU and cell phone chips.

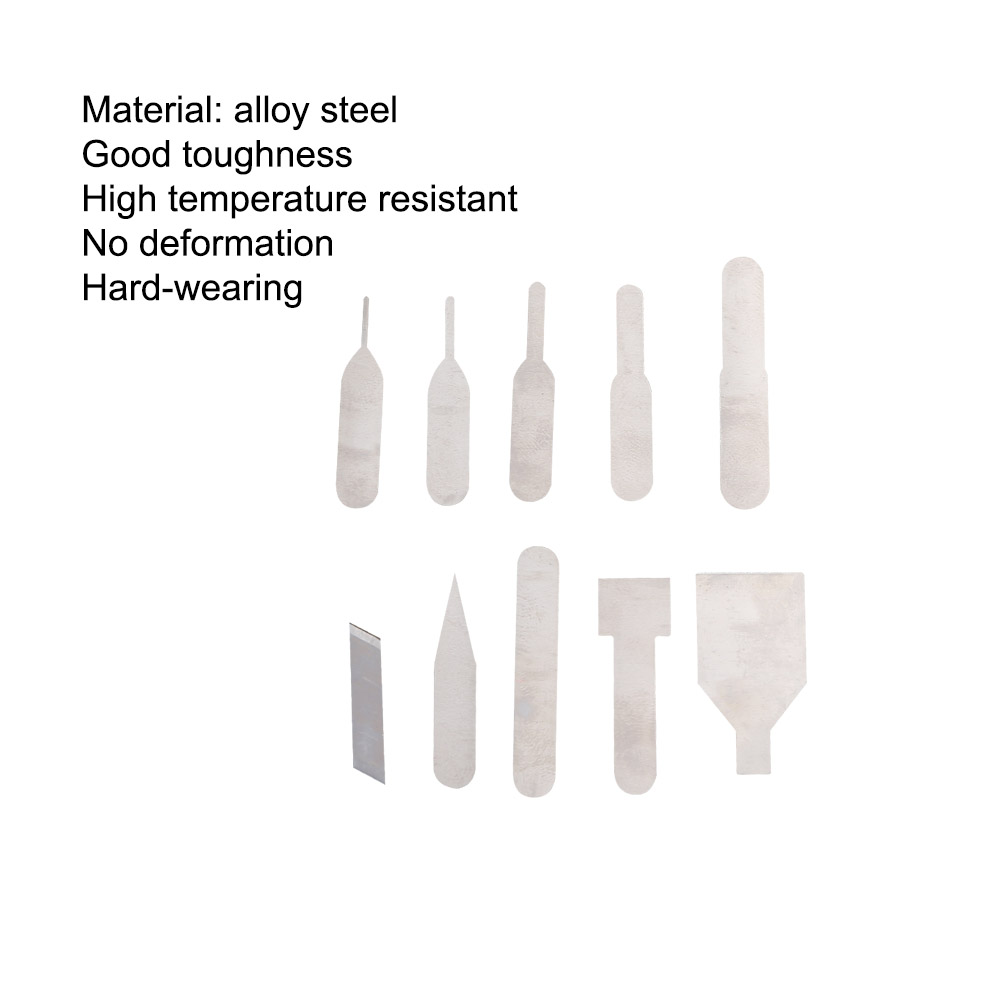

· The ultrathin blade is made of alloy steel,which is good toughness, high temperature resistant, no deformation and hard-wearing.
· For BGA repairing,dismantling phone CPU chip and phone repairing.
· It can be used to separate the welding spot.
· Application: For repairing the mainboard of iPhone, disassembling CPU and cell phone chips.
· The ultrathin blade is made of alloy steel,which is good toughness, high temperature resistant, no deformation and hard-wearing.

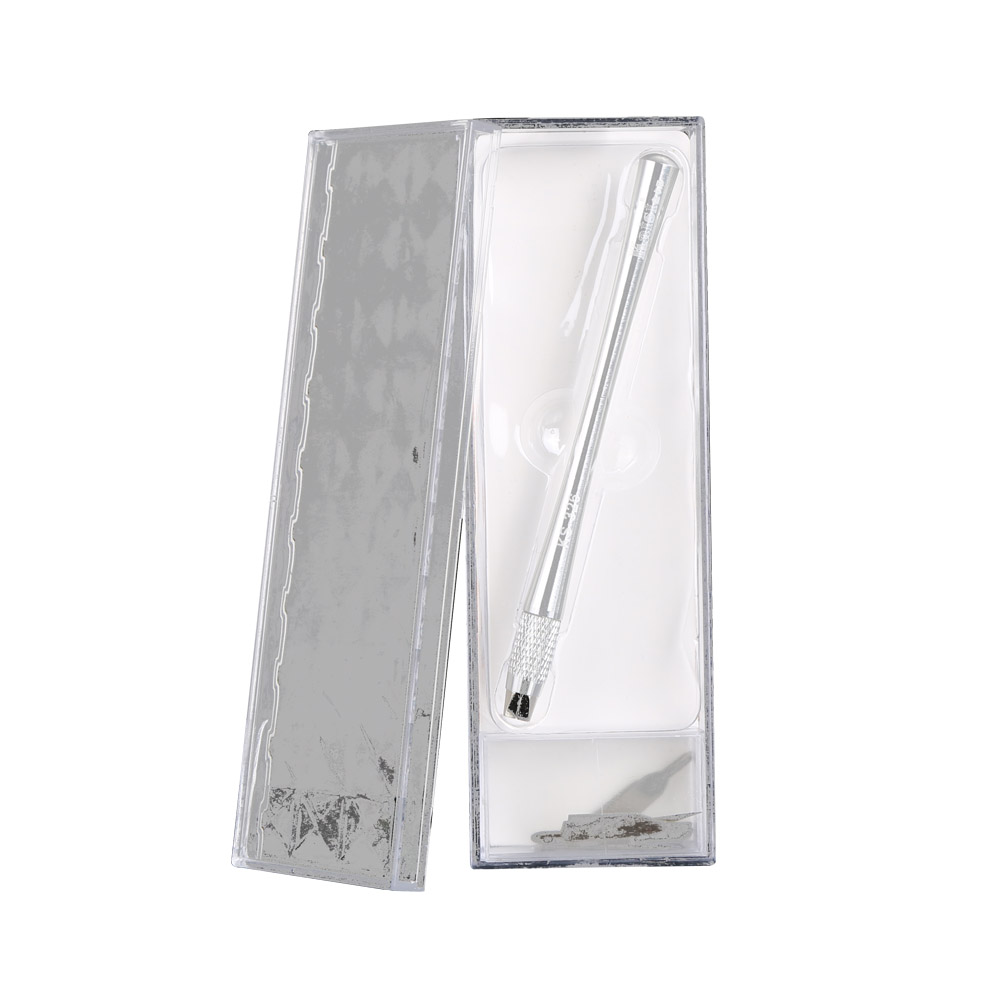

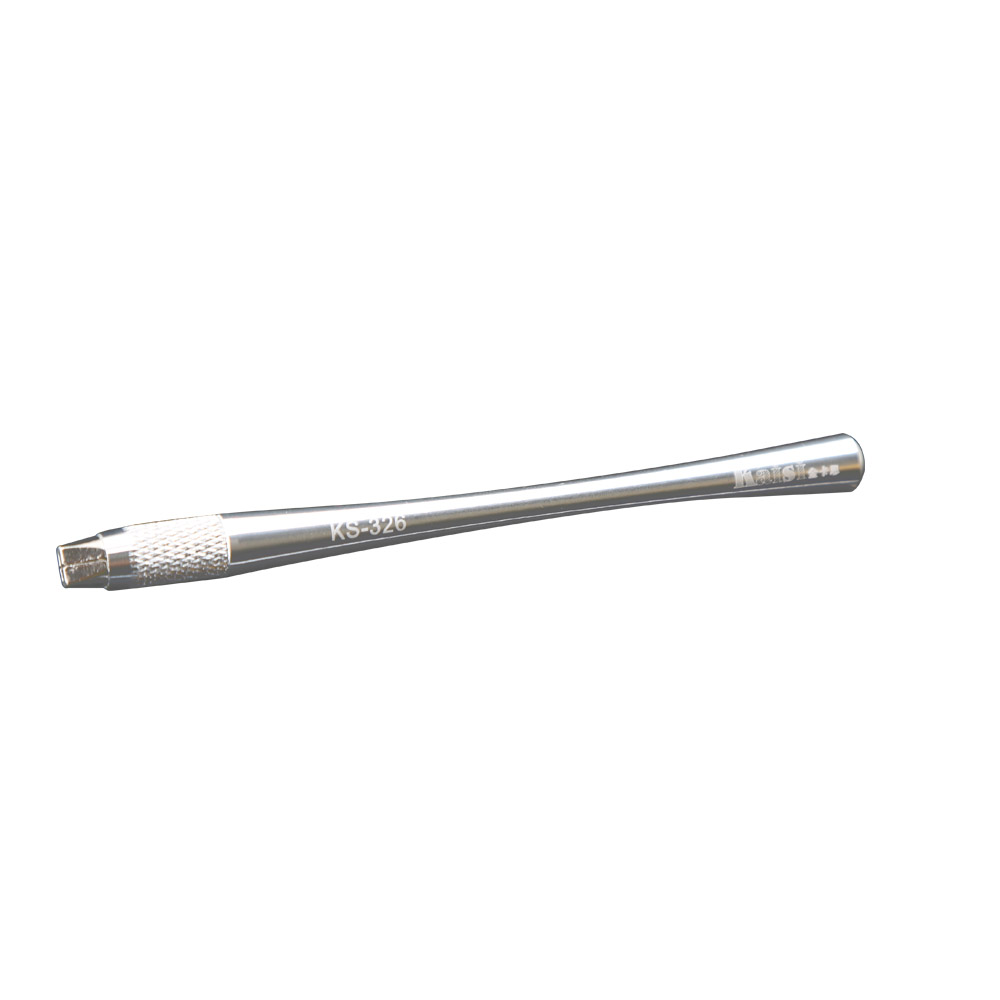

· All-metal handle is equipped with a high temperature resistant tip which can clamp the blade tightly, bring a comfortable use feeling to users.
Barcode
6922297053221
Product Details
Product Norm
Aftermarket Service
· Cleaning up the glue around the blade at 200℃ before disassembling chips.
· Setting the hot air gun with a big nozzle at 150℃ and wind speed 60, then preheating the mainboard for 2 minutes.
· Replacing a small nozzle to the hot air gun and setting it at 350℃, then heating the blade for 10 seconds. After that,infix the blade to the bottom of phone chip.
【Attention: Only the welding spots melting completely, can the blade infix chip easily.】
· Setting the hot air gun with a big nozzle at 150℃ and wind speed 60, then preheating the mainboard for 2 minutes.
· Replacing a small nozzle to the hot air gun and setting it at 350℃, then heating the blade for 10 seconds. After that,infix the blade to the bottom of phone chip.
【Attention: Only the welding spots melting completely, can the blade infix chip easily.】
2*Scraper blade
2*disassembling CPU upper A4/A5/A6/A7/A8/A9
2*For disassembling chip
2*For disassembling battery IC of iPhone 6s, various glass IC
2*For disassembling CPU/ WiFi of the base band
2*For disassembling CPU upper parts
2*For disassembling A8/A9 chip
2*Graver
2*disassembling CPU upper A4/A5/A6/A7/A8/A9
2*For disassembling chip
2*For disassembling battery IC of iPhone 6s, various glass IC
2*For disassembling CPU/ WiFi of the base band
2*For disassembling CPU upper parts
2*For disassembling A8/A9 chip
2*Graver
Barcode (EAN)
6922297053221
6922297053221
Official Service
