Precision neutral microscope series
Release Time:2020-03-19

1.jpgdvdf


A  microscope  is  an  instrument  used  to  improve  the  resolution  of  an  object  or  image.  The  types  include  composite,  stereo  or  digital.A  digital  microscope  is  used  to  display  images  on  a  display  rather  than  through  a  lens.A  microscope  can  have  one  eye  (one),  two  eyes  (two),  or  three  eyes  (three)  with  different  magnification  capabilities.

The following three neutral black  microscopes  recommended  by  our  company !


 37045A-STL2

NEWPRODUCTS



microscope


01.jpg 37045A(STL2)

Professional  stereo  microscope  has  the  function  of  diopter  adjustment,  which  can  adapt  to  different  eye  intensity  differences.LED  light  source  provides  bright  cold  light  for  temperature  sensitive  samples.Bilateral  focus  makes  it  easy  for  left-hand  and  right-hand  users.




Key  points:  heavy  base,  double  support  slide
Microscope  bracket:  arm,  column
Lighting  type:  up,  reflection
Light  source:  1W  led  on  adjustable  gooseneck  (LED  lights  need  to  be  equipped  separately)



High  definition  wide-angle  eyepiece

Wide  angle  eyepiece,  adjustable  pupil  distance,  wider  vision,  equipped  with  parallax  adjustment  wheel,  more  comfortable  to  watch.  3.  The  height  from  the  large  working  distance  objective  lens  to  the  stage  can  be  adjusted  at  will  to  meet  the  observation  of  objects  of  different  heights  and  provide  greater  operation  space.  Eyepiece  (DIN,  30.5mm):  wf10x18mm,  wf20x10mm




Continuous  zoom  unit

Fine  tuning  device,  refined  to  focus  when  using  every  milligram,  more  accurate  and  stable



37045A / 7045

37045A

Binocular  magnification:  20x,  40x

Objective  force:  2x

Eyepiece  (DIN,  30.5mm)  :  WF10x18mm,  WF20x10mm

Focus: Bilateral coarse

Bracket:  boom,  column  lighting

Type:  up,  reflection

Light  source:  1W  led  on  adjustable  gooseneck  (LED  lights  need  to  be  equipped  separately)

Power  supply:  110v-120v

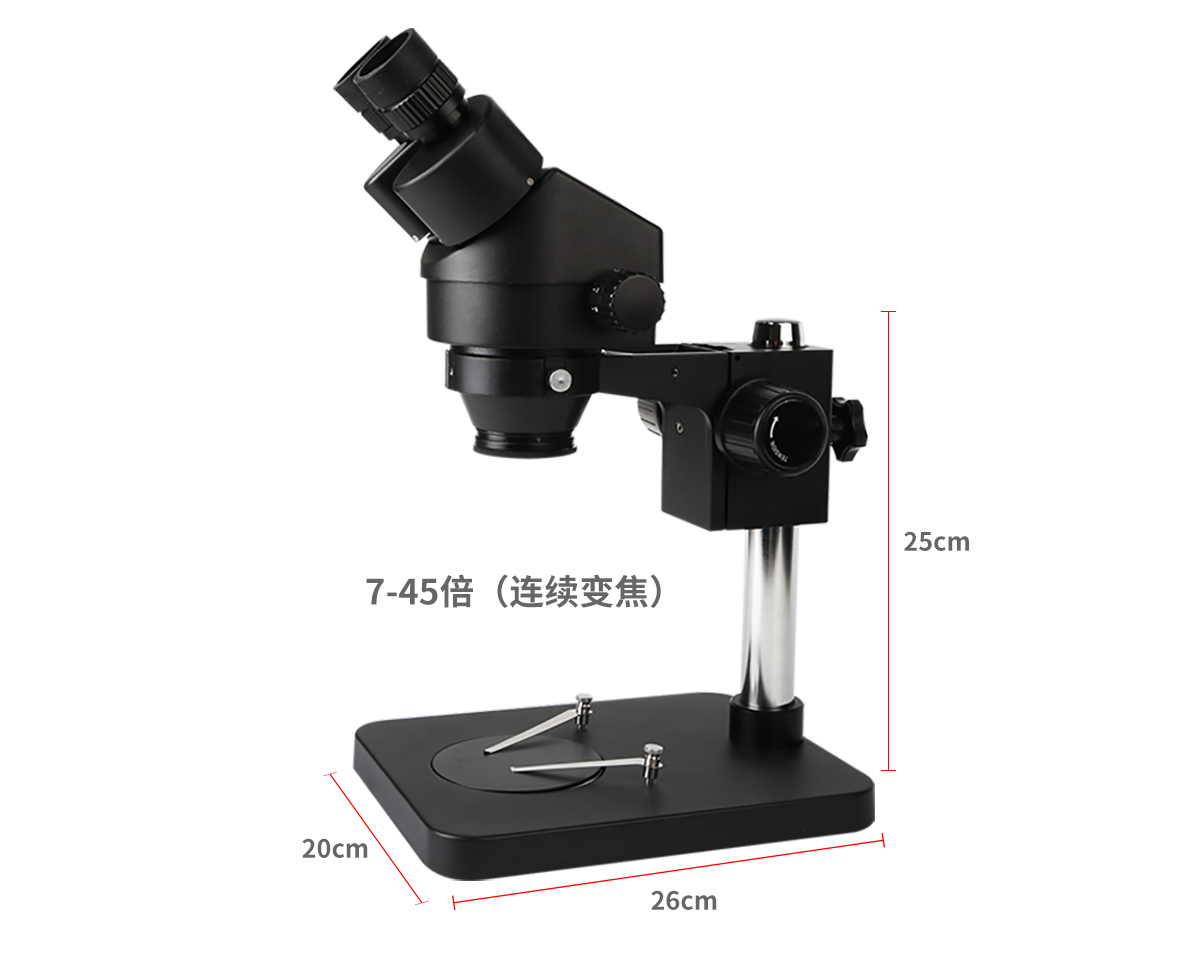

7045


Tilt  angle  of  observation  head:  45  °
Tube:  binocular
Eyepiece:  WF10  *  20MM  high  eyepiece
Objective:  0.70X  ~  4.5X  connected  zoom  objective
Magnification:  7x-45x,
Pupil  distance  adjustment:  range  54-75mm
Visual  range  adjustment:  both  visual  acuity  can  be  adjusted  within  ±  5  diopter
Working  distance:  100mm



Three  eye  microscope  can  be  connected  to  camera
