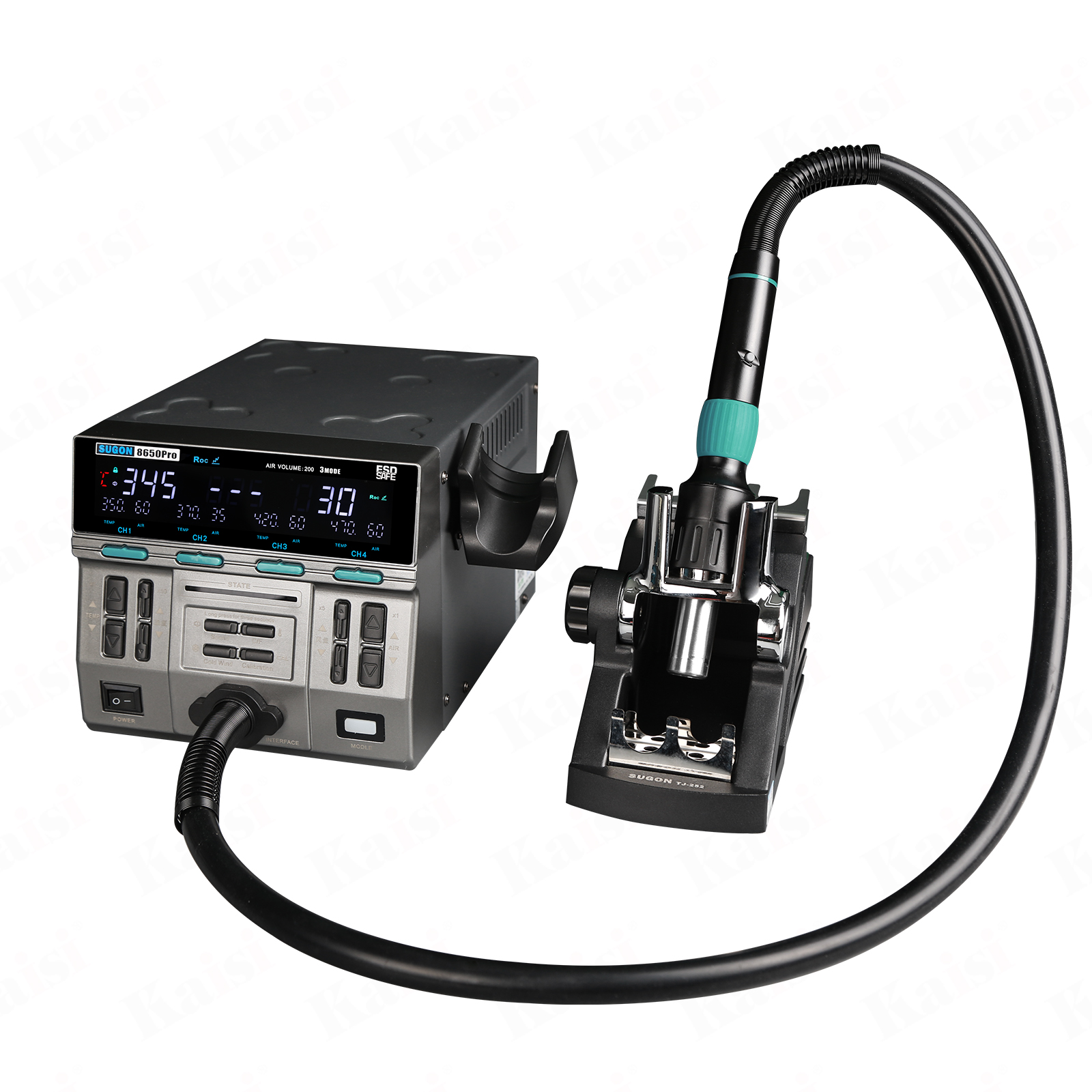

Product Name:8650pro Curve Edition

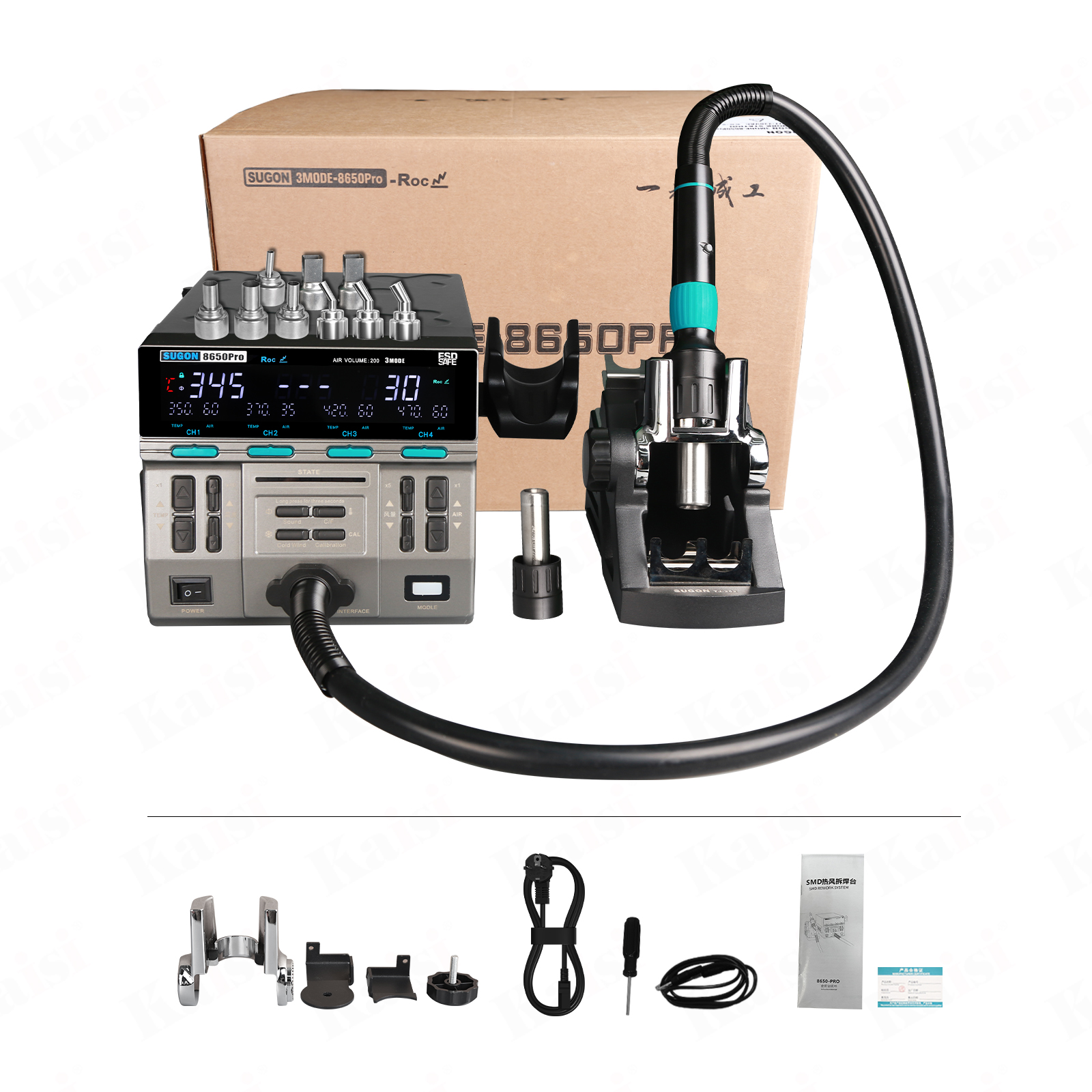

1. 8650pro host x 1
2. 11b integrated core x 1
3. Wind nozzle x 6
4. 252 bracket x 1
5. Wind nozzle gasket x 2
6. Instruction manual x 1
7. Power cord x 1
8. 252 Wind Gun Rack Assembly Conversion Parts × 4
2. 11b integrated core x 1
3. Wind nozzle x 6
4. 252 bracket x 1
5. Wind nozzle gasket x 2
6. Instruction manual x 1
7. Power cord x 1
8. 252 Wind Gun Rack Assembly Conversion Parts × 4
Product Details
Product Norm
Aftermarket Service
1. Compared with 8650, the appearance of the host is the same, and the Roc curve identifier is added to the plane version. In terms of function, the soft mode is cancelled, the curve heating function is added, and the general mode and high-speed mode are retained.
2. Introduction of curve mode Roc. Preset 3 groups of working interval, each group can be free to set the preheating temperature and heating time, each group of temperature reaches the preset temperature automatically into the working mode of the first group, when the third group of temperature reaches, the machine beeps, then the welding operation can be carried out. After entering the Roc curve mode, the machine panel will display the current stage, real-time temperature, air volume and working countdown, and automatically jump to the next stage after the completion of each stage until the three stages of heating are completed. Since the first and second sections are preheating, it is only necessary to set the temperature air volume of the third section, and the temperature air volume of each section can be freely set, and the longest working time is 330 seconds

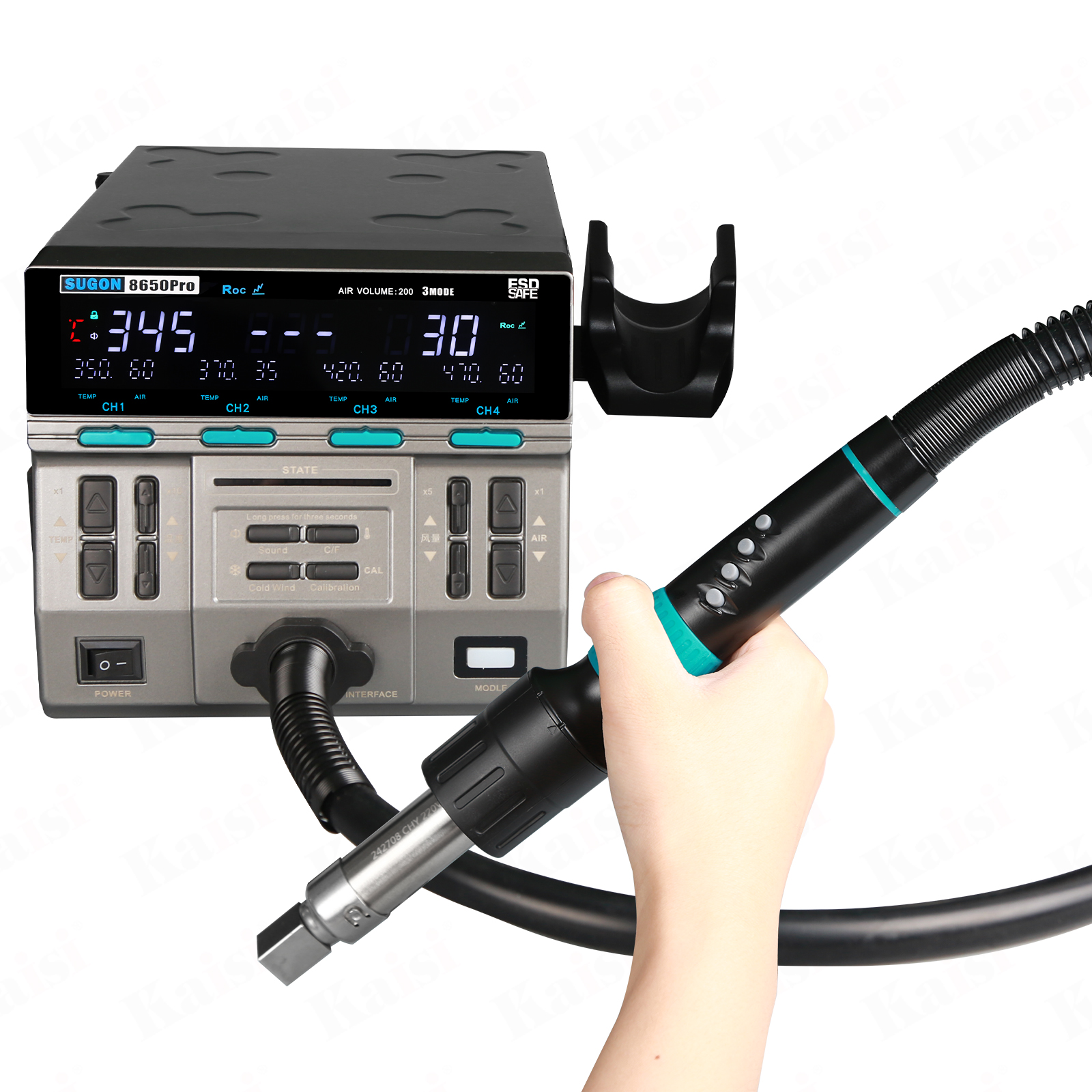

3, upgrade the new wind gun handle, the appearance of the work and the original has a larger upgrade, the key is smaller, in the original 4 groups of working memory on the basis of retaining the new wire control function. In curve mode, ch1/ch2 is used to set the temperature, ch3/ch4 is used to set the air volume, and the cold air button is used to open the curve mode. Hold down the button for 3 seconds to restore the cold air function.
4, the upgraded version of the knob heating core, no screw fixing, hand twisting can be unlocked and replaced, the standard 7A, 11b heating core each.
5, add a 15*15mm, 15*17mm wind nozzle each, with a special wind gun frame, welding motherboard more accurate and convenient.
6. Upgrade the 252 bracket with one more front plug than 251.
7, upgrade the heating core giant 8650pro Pro version is not universal
2. Introduction of curve mode Roc. Preset 3 groups of working interval, each group can be free to set the preheating temperature and heating time, each group of temperature reaches the preset temperature automatically into the working mode of the first group, when the third group of temperature reaches, the machine beeps, then the welding operation can be carried out. After entering the Roc curve mode, the machine panel will display the current stage, real-time temperature, air volume and working countdown, and automatically jump to the next stage after the completion of each stage until the three stages of heating are completed. Since the first and second sections are preheating, it is only necessary to set the temperature air volume of the third section, and the temperature air volume of each section can be freely set, and the longest working time is 330 seconds
3, upgrade the new wind gun handle, the appearance of the work and the original has a larger upgrade, the key is smaller, in the original 4 groups of working memory on the basis of retaining the new wire control function. In curve mode, ch1/ch2 is used to set the temperature, ch3/ch4 is used to set the air volume, and the cold air button is used to open the curve mode. Hold down the button for 3 seconds to restore the cold air function.
4, the upgraded version of the knob heating core, no screw fixing, hand twisting can be unlocked and replaced, the standard 7A, 11b heating core each.
5, add a 15*15mm, 15*17mm wind nozzle each, with a special wind gun frame, welding motherboard more accurate and convenient.
6. Upgrade the 252 bracket with one more front plug than 251.
7, upgrade the heating core giant 8650pro Pro version is not universal
Power: 1300w (Max)
Input voltage
AC 110V-AC 220V/50Hz-60Hz
Temperature range
100℃-550℃/212°F-1022°F
Air volume range
0-200.
Operating time of Roc mode
There are three segments each 330 seconds long
Input voltage
AC 110V-AC 220V/50Hz-60Hz
Temperature range
100℃-550℃/212°F-1022°F
Air volume range
0-200.
Operating time of Roc mode
There are three segments each 330 seconds long
