Product Name:3010PM v26
The charm of SUGON 3010PM power supplies - designed for you who seek extreme performance and stability. The core is equipped with a large ring transformer to ensure that the power output is as accurate and stable as a rock, and the rated power is up to 310W, even in the face of long-term continuous operation, it can still maintain the stable operation of the power supply, extend the service life, and escort your equipment.
Product Details
Product Norm
Aftermarket Service
1. A new pulse protection function has been added. When used in conjunction with infrared thermal imaging instruments, the fault point will flash as a prompt, enhancing the efficiency of maintenance.
2. It supports one-click switching between constant current and constant voltage modes, with convenient operation and adaptability to various testing scenarios.
3. A new set of 0-30V adjustable output and a 5V/2A USB fixed output have been added to the back to expand the connection capability.
4. Add a load power supply display function to provide real-time and clear understanding of the power supply's working status.
5. It provides a high and low voltage (8.4V/30V) switching function. The 8.4V is particularly suitable for laptop maintenance.
It is equipped with 6 sets of intelligent USB adjustable outputs and 2 sets of fixed 5V/2A USB outputs, meeting the power supply requirements of multiple devices simultaneously without the need for frequent interface replacement.
7. It is equipped with an output switch function, making operation safer and more convenient.
8. It is equipped with 4 memory buttons, supporting one-second reading and three-second storage. It can save voltage, current, continuous overcurrent/single overcurrent and protection Settings.
9. The voltage and current output are stable and reliable, with no peak fluctuations. The constant current and constant voltage mode ensures the accuracy of the test.
10. It adopts a toroidal transformer design, which can operate stably and continuously in high-temperature environments, thus extending the service life of the power supply.
11. It is equipped with multiple overcurrent protection Settings to enhance the safety and stability of equipment operation.
2. It supports one-click switching between constant current and constant voltage modes, with convenient operation and adaptability to various testing scenarios.
3. A new set of 0-30V adjustable output and a 5V/2A USB fixed output have been added to the back to expand the connection capability.
4. Add a load power supply display function to provide real-time and clear understanding of the power supply's working status.
5. It provides a high and low voltage (8.4V/30V) switching function. The 8.4V is particularly suitable for laptop maintenance.
It is equipped with 6 sets of intelligent USB adjustable outputs and 2 sets of fixed 5V/2A USB outputs, meeting the power supply requirements of multiple devices simultaneously without the need for frequent interface replacement.
7. It is equipped with an output switch function, making operation safer and more convenient.
8. It is equipped with 4 memory buttons, supporting one-second reading and three-second storage. It can save voltage, current, continuous overcurrent/single overcurrent and protection Settings.
9. The voltage and current output are stable and reliable, with no peak fluctuations. The constant current and constant voltage mode ensures the accuracy of the test.
10. It adopts a toroidal transformer design, which can operate stably and continuously in high-temperature environments, thus extending the service life of the power supply.
11. It is equipped with multiple overcurrent protection Settings to enhance the safety and stability of equipment operation.
Power： 310W (MAX)

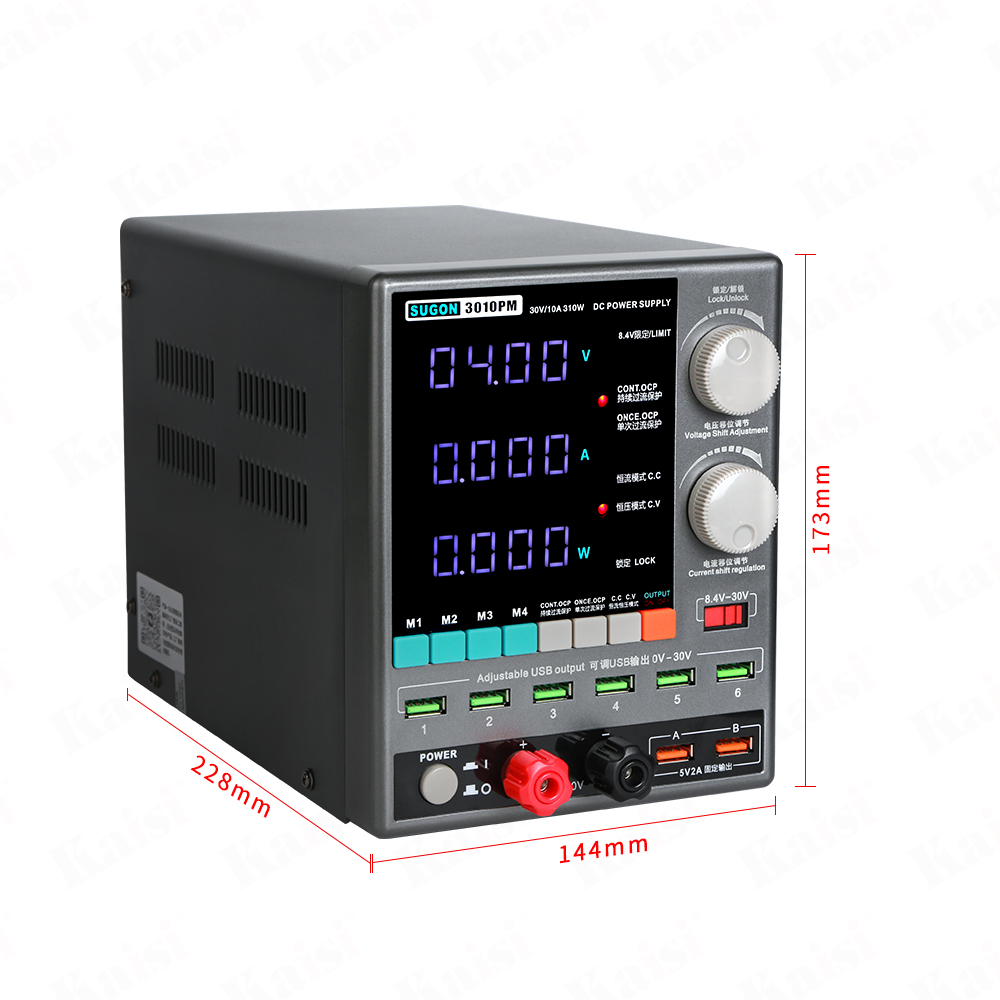

Size： 144 x 228 x 173 mm
Input voltage：Gb/EU standard : AC 220V,50Hz/60HzUs standard : AC 110V, 50Hz/60Hz
Output voltage range： DC 0-30V
Maximum adjustable current : DC 10A
