Product Name:3005PM v26

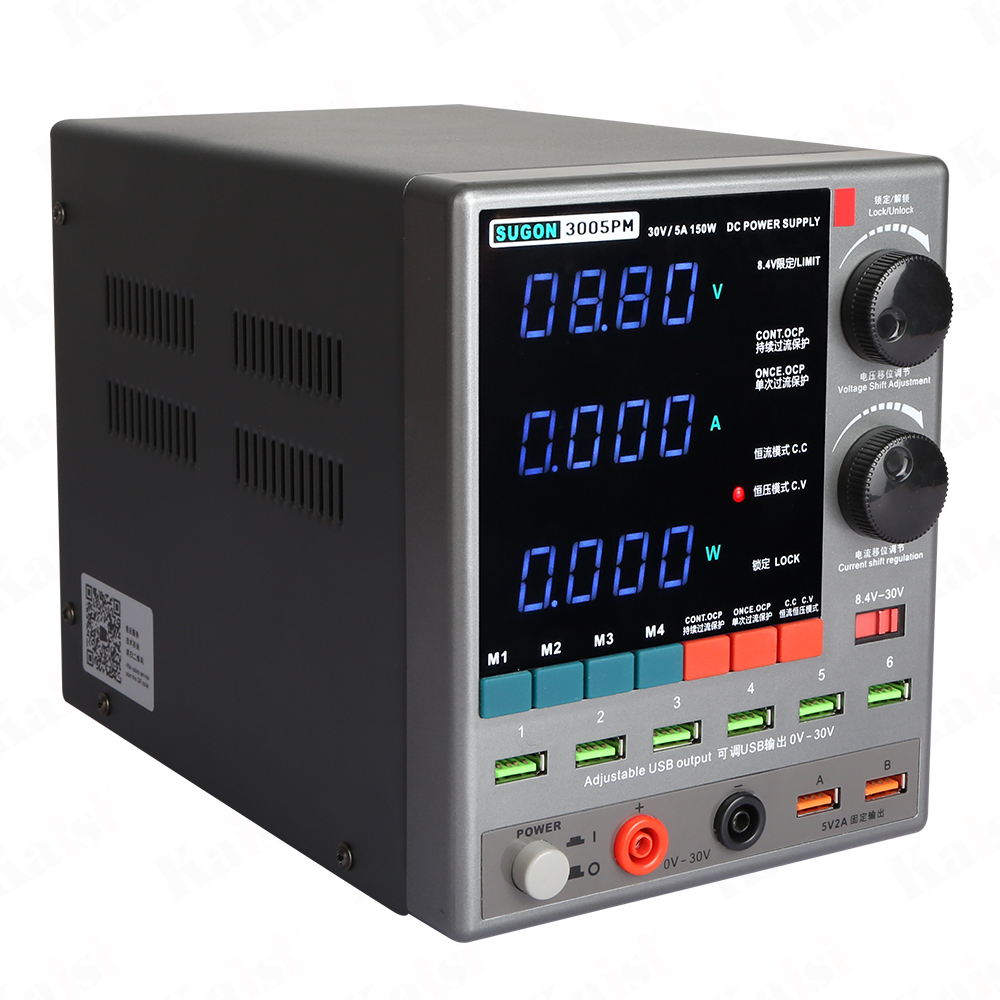

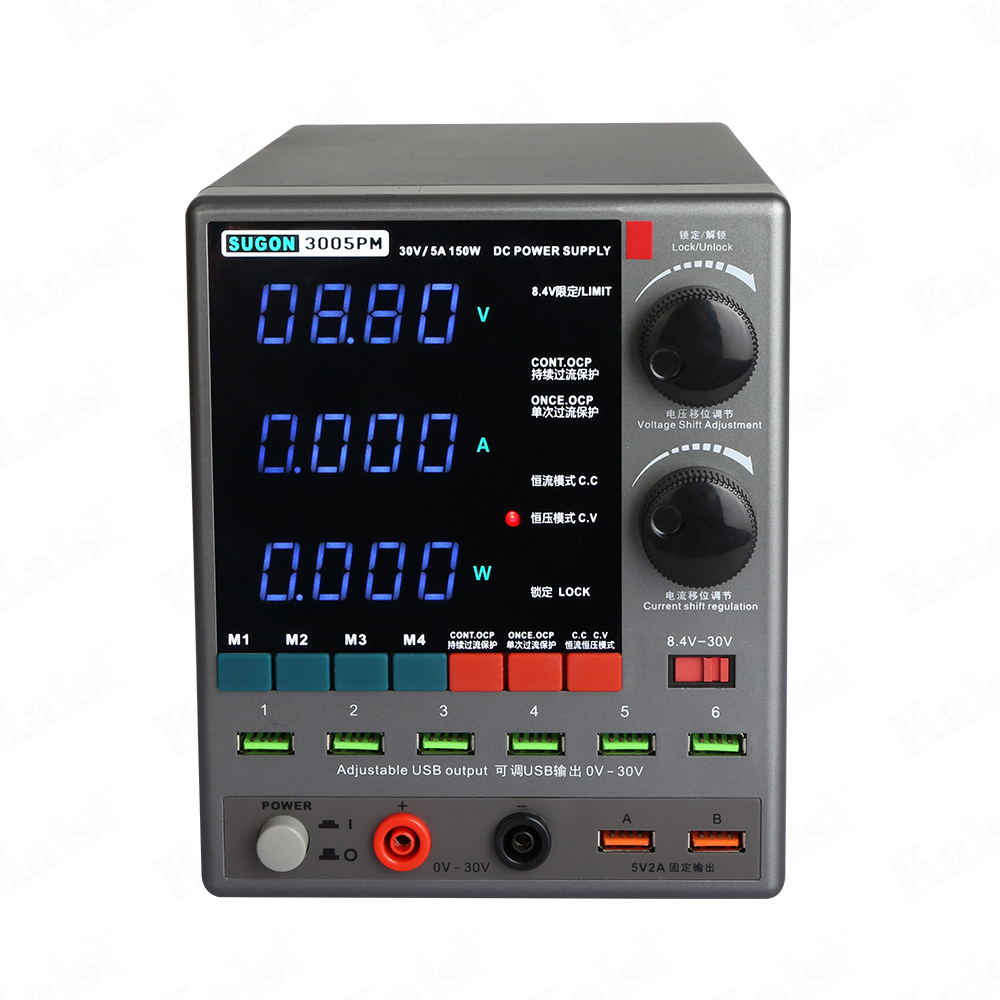

The SUGON 3005PM-26 power supply has been comprehensively upgraded, featuring new pulse protection and one-button constant current/constant voltage modes. It is equipped with multiple output configurations and an intelligent memory function, ensuring stable operation at high temperatures and providing higher efficiency and stronger protection for electronic maintenance and testing!
Product Details
Product Norm
Aftermarket Service
1. A new pulse protection function has been added. When used in conjunction with infrared thermal imaging instruments, the fault point will automatically flash to prompt, making precise positioning more efficient.
2. It supports one-click switching between constant current and constant voltage modes, allowing for quick adaptation to different testing environments and smarter operation.
3. A new 0-30V adjustable output and a 5V/2A USB fixed output have been added to the back to meet the connection requirements of diverse devices.
4. The panel has added a new Chinese logo for "Speed Work", making the functional areas clear at a glance and enhancing operational efficiency.
5. Real-time display of load power enables a clear understanding of the power supply's working status, enhancing the transparency of usage.
6. Supports 8.4V/30V high and low voltage switching. The 8.4V is specially optimized for laptop maintenance.
7. It provides more USB interfaces, including 6 sets of intelligent USB adjustable outputs and 2 sets of fixed 5V/2A outputs, eliminating the need for frequent plugging and unplugging for replacement.
8. Equipped with 4 memory buttons, it supports one-second reading, three-second storage, and one-click restoration of voltage, current and protection Settings.
9. The voltage and current output are stable without fluctuation. Even in the constant current and constant voltage mode, it can maintain stable performance despite environmental interference.
10. It adopts a toroidal transformer design, ensuring stable operation even in high-temperature environments and extending the service life of the equipment.
11. It is equipped with multiple overcurrent protection mechanisms to comprehensively ensure the safety of the equipment and operation.
2. It supports one-click switching between constant current and constant voltage modes, allowing for quick adaptation to different testing environments and smarter operation.
3. A new 0-30V adjustable output and a 5V/2A USB fixed output have been added to the back to meet the connection requirements of diverse devices.
4. The panel has added a new Chinese logo for "Speed Work", making the functional areas clear at a glance and enhancing operational efficiency.
5. Real-time display of load power enables a clear understanding of the power supply's working status, enhancing the transparency of usage.
6. Supports 8.4V/30V high and low voltage switching. The 8.4V is specially optimized for laptop maintenance.
7. It provides more USB interfaces, including 6 sets of intelligent USB adjustable outputs and 2 sets of fixed 5V/2A outputs, eliminating the need for frequent plugging and unplugging for replacement.
8. Equipped with 4 memory buttons, it supports one-second reading, three-second storage, and one-click restoration of voltage, current and protection Settings.
9. The voltage and current output are stable without fluctuation. Even in the constant current and constant voltage mode, it can maintain stable performance despite environmental interference.
10. It adopts a toroidal transformer design, ensuring stable operation even in high-temperature environments and extending the service life of the equipment.
11. It is equipped with multiple overcurrent protection mechanisms to comprehensively ensure the safety of the equipment and operation.
Power: 160W(max)
Input voltage: national standard/European standard AC220V, 50Hz/60Hz
American standard: AC 110V, 50Hz/60Hz
Output voltage range: DC 0-30V, continuously adjustable
Maximum current: DC 5A
Packing size: 300 x 200 x 255mm
Gross weight: 5KG
Input voltage: national standard/European standard AC220V, 50Hz/60Hz
American standard: AC 110V, 50Hz/60Hz
Output voltage range: DC 0-30V, continuously adjustable
Maximum current: DC 5A
Packing size: 300 x 200 x 255mm
Gross weight: 5KG
