    Product Name:7050-B1

    -Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.

    -The professional stereo zoom microscope has a pair of 10X super-widefield high-eyepoint eyepieces, a 0.7X-4.5X zoom objective, a 0.5X Barlow lens, and a single-arm boom stand, pillar stand.

    -The microscope has an overall magnification range of 7X-45X. The binocular viewing head has an interpupillary range of 55 to 75mm, a 45-degree inclination to reduce eye and neck strain, and 360-degree rotation to enable sharing.

    -The WH10x20mm super-widefield high-eyepoint eyepieces combine with the 0.7X-4.5X zoom objective to provide continuous zoom magnification and a longer working distance for inspecting large-scale specimens that require handling or repair.

    -The microscope includes a 0.5X Barlow lens that can be added to the objective to decrease the magnification range. A Barlow lens with a magnification of less than.

    Barcode (EAN)
    6922297056550


    Product Details Product Norm Aftermarket Service

    Description:

    The removable 80-bulb LED ring light provides bright, cool light for working with temperature-sensitive or live specimens.

    The ring light provides shadow-free illumination, and a rheostat controls the amount of light emanating from the lamp.

    Power and adjustment controls are located on the light head. The light has a 100,000-hour life span and a 90V-265V variable power supply.

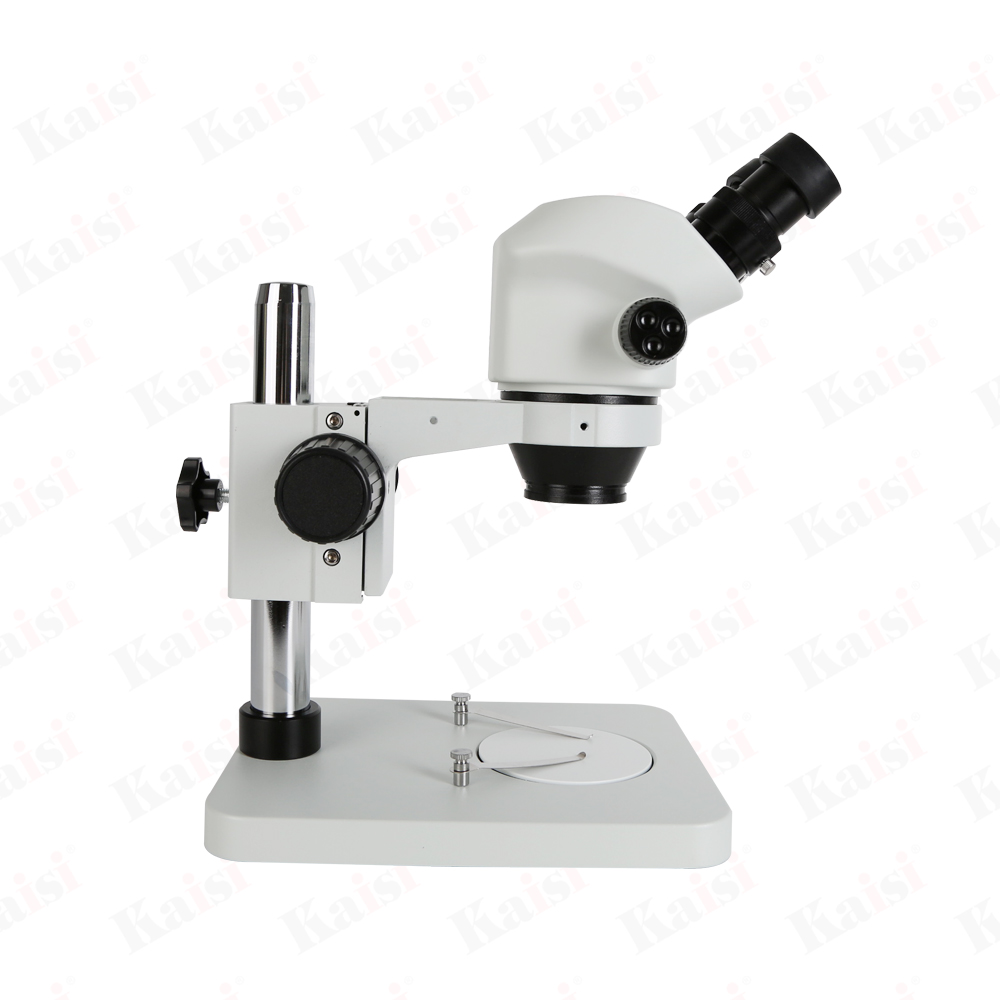

    The microscope has a 17" pillar that has an 8" vertical working distance. The 16" single-arm boom has a 24" overall length.

    Bilateral focus eases use for left- and right-handed users. The microscope head can be rotated on the X- and Y-axes. The solid cast-steel base is 1-3/4 x 9 x 9 inches (H x W x D).

    Specifications:

    Head: Binocular

    Magnification range: 3.5X-45XZoom

    Objective Power: 0.7X-50X

    Eyepieces (DIN, 30mm): WH10x20mm high-eyepoint

    Zoom Range: 13:1

    Field of View: 2-1/2"

    Optical working distance: Up to 8"

    Microscope Stand: Single-arm boom stand==>Pillar stand

    Head Movement: X- and Y-axes

    Illumination Type: Episcopic (reflected)

    Light Source: 80-bulb LED ring light

    Power: 90V-265V

    Barcode (EAN)
    6922297056550
